Cam & lifter kit Chrysler 383ci 400ci 440ci BB V8 hydraulic


No Brand
Part No: E7194
Cam & lifter kit Chrysler 383ci 400ci 440ci BB V8 hydraulic (performer Rpm) 238 246 @ 0.050 duration 480 495 lift 110 degree (Must be used with SK65622 or E1084 Break-in Zinc Oil Additive) single bolt cam Edelbrock 7194
Additional Notes:
Availability:In Stock
$949.74 (incl Gst)
$857.83 (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $745.94
Performer-Plus Camshaft Kit for Big-Block Chrysler 351 W V8

Edelbrock Part # 7194 Performer RPM Camshaft is designed for 1968 & Later Chrysler 383-400-440 V-8 applications. This Edelbrock cam kit produced 469 HP & 515 ft-lbs. of torque when used with #7193 intake and #60929 cylinder heads on a 440 engine. The camshaft works well with high-performance street applications, Performer RPM cams provide power from 1500 to 6500 rpm. This hydraulic lifter camshaft is dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.

Camshaft Specifications:
• Duration @ .050 Intake: 238 degrees
• Duration @ .050 Exhaust: 246 degrees
• Lift @ Valve Intake: .480”
• Lift @ Valve Exhaust: .495”
• Lobe Separation: 110 Degrees
• Intake Centerline: 105 Degrees
• Idle Vacuum @ 1000 RPM’s: 10”

Installation Notes:
• Camshaft utilizes one bolt configuration.
• Use only stock ratio rocker arms
• Adjustable valvetrain required
• Do not use rotator type valve springs or retainers for this application.
• Oil/additive must contain Zinc designed for use with flat tappet camshafts.
• Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to to prevent cam lobe and lifter wear from occurring during initial start-up.
• Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.

Advertised Exhaust Duration: 308 deg
Advertised Intake Duration: 300 deg
Cam Type: Cast
Exhaust Duration at .050 inch Lift: 246 deg
Exhaust Valve Lift: 0.495 in
Intake Valve Lift: 0.480 in
Lifter Type: Hydraulic
Lobe Separation: 110 deg




Part #
Description
Back Order
Your Price
Qty

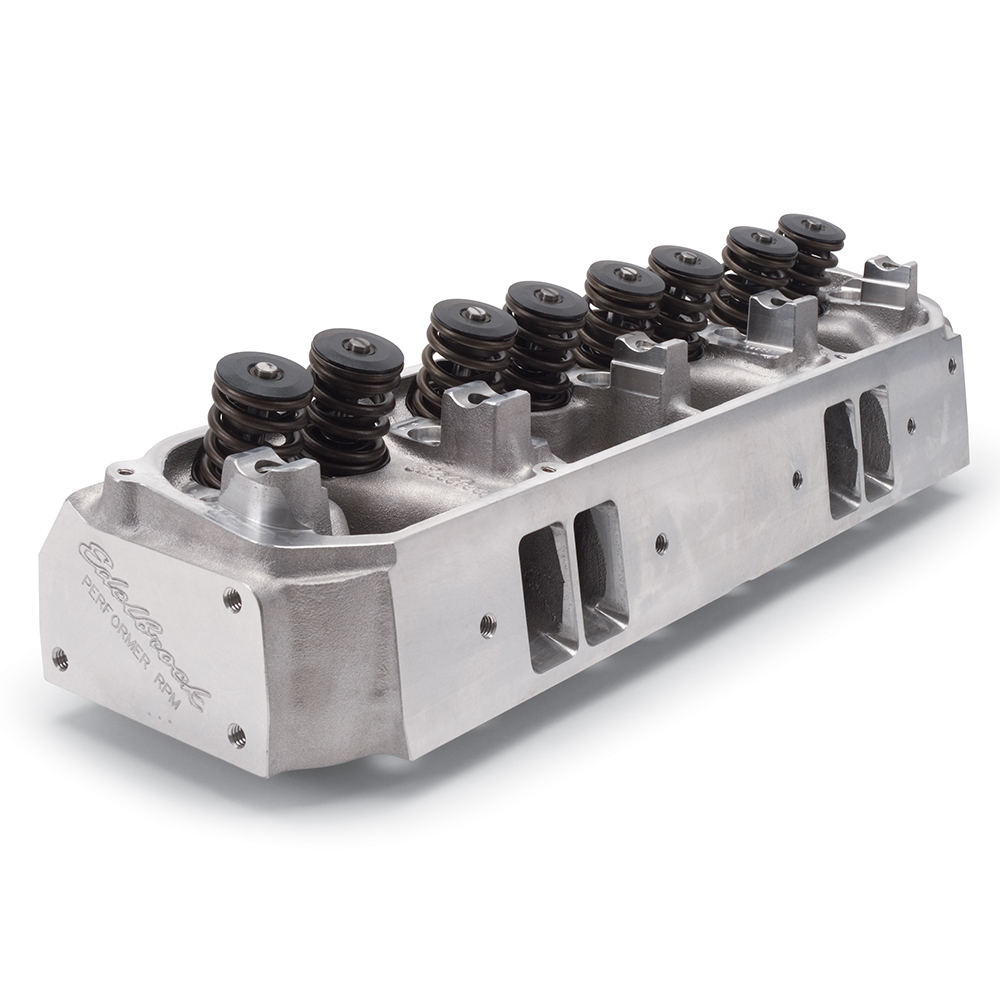

E60929
E60929
Cylinder head Chrysler BB 361-440 performer Rpm alloy comple
No
$2,092.90 (incl Gst)
E4491
E4491
Valve covers Chrysler BB chrome plated steel 3.6" tall signa
No
$155.77 (incl Gst)
E5794
E5794
Valve spring kit performer to suit SB Chev approx 104-114lbs
No
$265.39 (incl Gst)
E1084
E1084
Edelbrock high performance zinc engine oil additive 12 oz (t
No
P.O.A. (incl Gst)

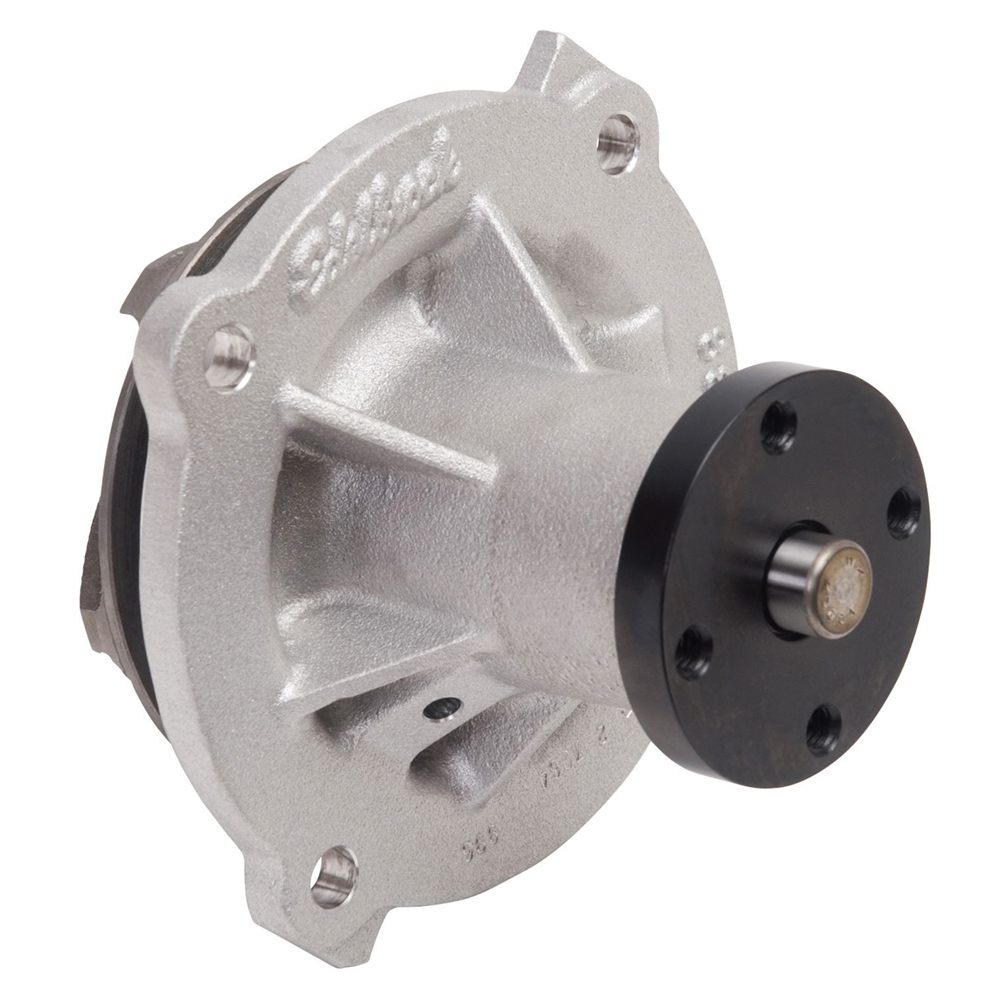

E8814
E8814
Water pump Chrysler 350ci 361ci 383ci 400ci 413ci 440ci BB 1
No
$449.67 (incl Gst)

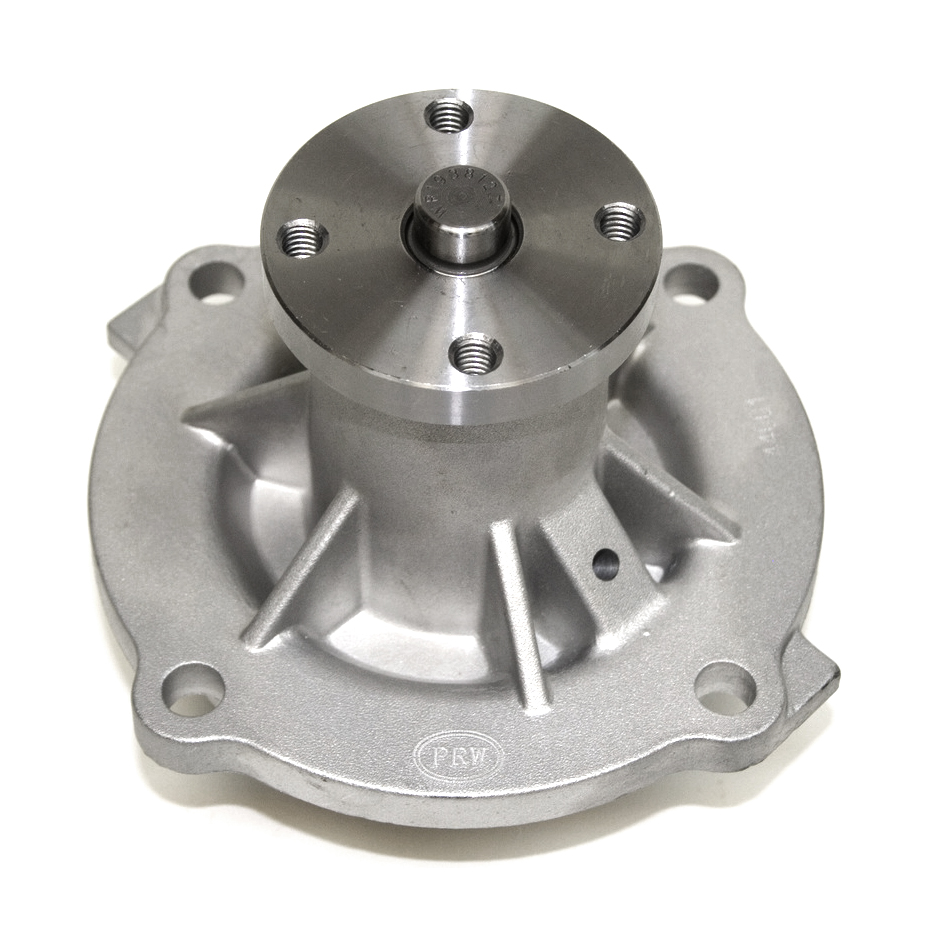

E8814PRW
E8814PRW
Water pump Chrysler 350ci 361ci 383ci 400ci 413ci 440ci BB 1
No
P.O.A. (incl Gst)
SK65622
SK65622
High zinc oil treatment additive with ZDDP 4 oz bottle treat
No
$22.00 (incl Gst)
TCS12460-2
TCS12460-2
Timing cover set Chrysler 350ci 361ci 383ci 400ci 413ci 426c
No
$38.33 (incl Gst)
Install Instructions
Installation Instructions










Fitment
