Distributor Chev V8 pro-billet magnetic non vac advance must


No Brand
Part No: MSD8570
Distributor Chev V8 pro-billet magnetic non vac advance must use with Hyfire or similar ignition control small diameter with slip collar MSD Ignition 8570
Additional Notes:
Availability:In Stock
$1,032.31 (incl Gst)
$963.49 (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $837.82
MSD Chev Pro-Billet Small Diameter V8 Distributor
If you need clearance from all sides, this is your best bet. Must be used with an MSD 6, 7 or 8-series ignition.

This Distributor was designed for racers and street rodders that have space limitations due to firewall interference, blowers or oversized intake manifolds such as tunnel rams. The distributor is 3/8" narrower and almost 1" shorter than a standard distributor.

Proven performance features include a high output magnetic pick-up and precision amachined reluctor for accurate ignition triggering. A fully adjustable mechanical advance allows you to tailor the advance curve to your specific application. Topping it all off is our own small diameter cap. This is molded out of durable Rynite® material and comes with an optional wire retainer.

• CNC machined billet aluminum housing is 3/8” smaller in diameter and 7/8” shorter than conventional Chevy V-8 distributors with the “points” type cap
• Supplied with small diameter HEI style distributor cap and rotor (will accept 8441 Cap-A-Dapt)
• Will not accept a vacuum advance canister
• No CARB Exemption Order Number
• O-ring seals can be added to modified blocks to improve oil pressure control
• Must be used with an MSD 6, 7, 8, or 10 Series Ignition
• Special oil tract improves lubrication to the distributor and cam gear

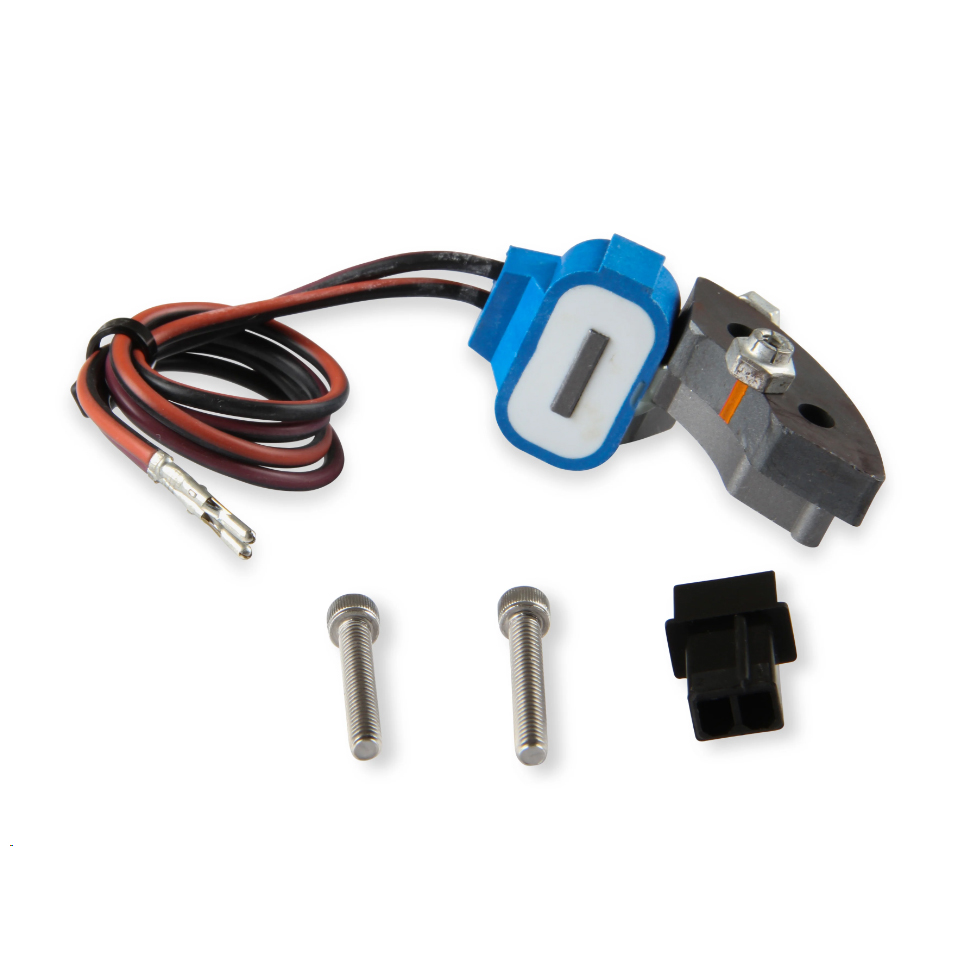

• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

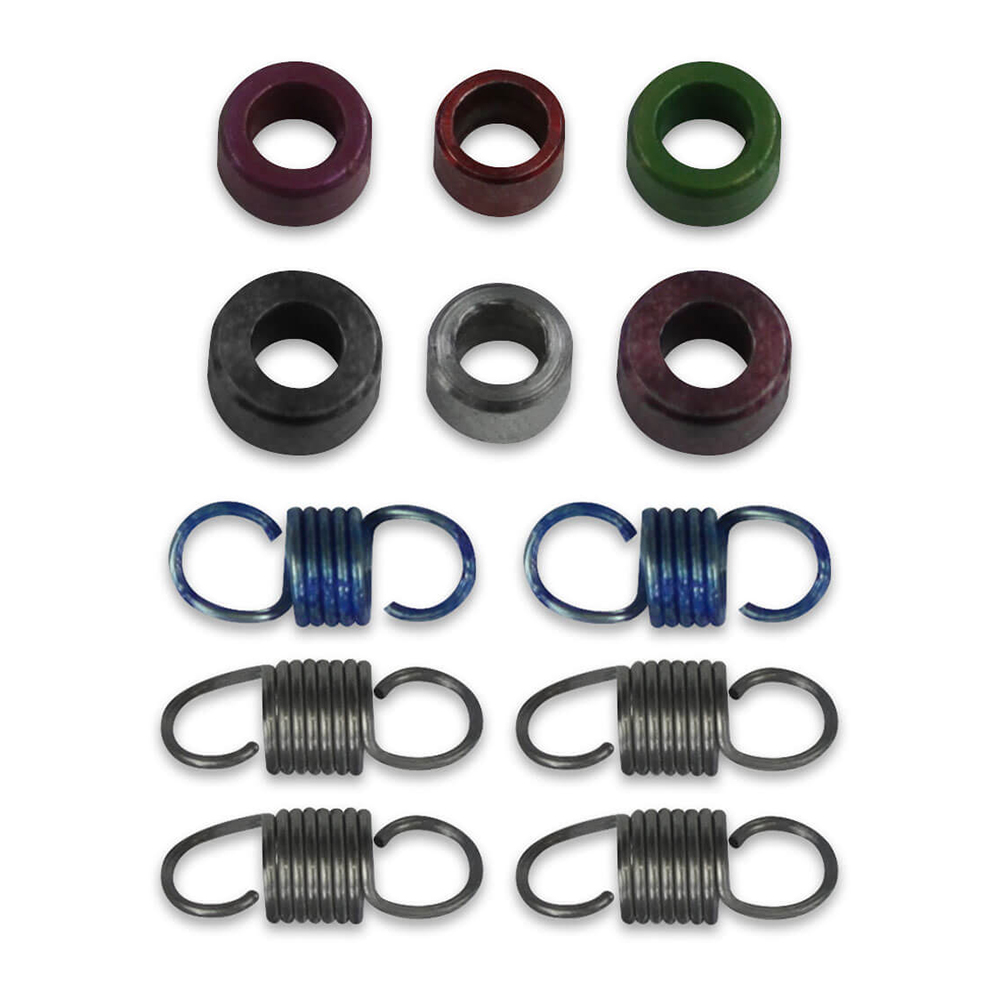

• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Adjustable slip collar mounting flange for engines with modified deck heights
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing

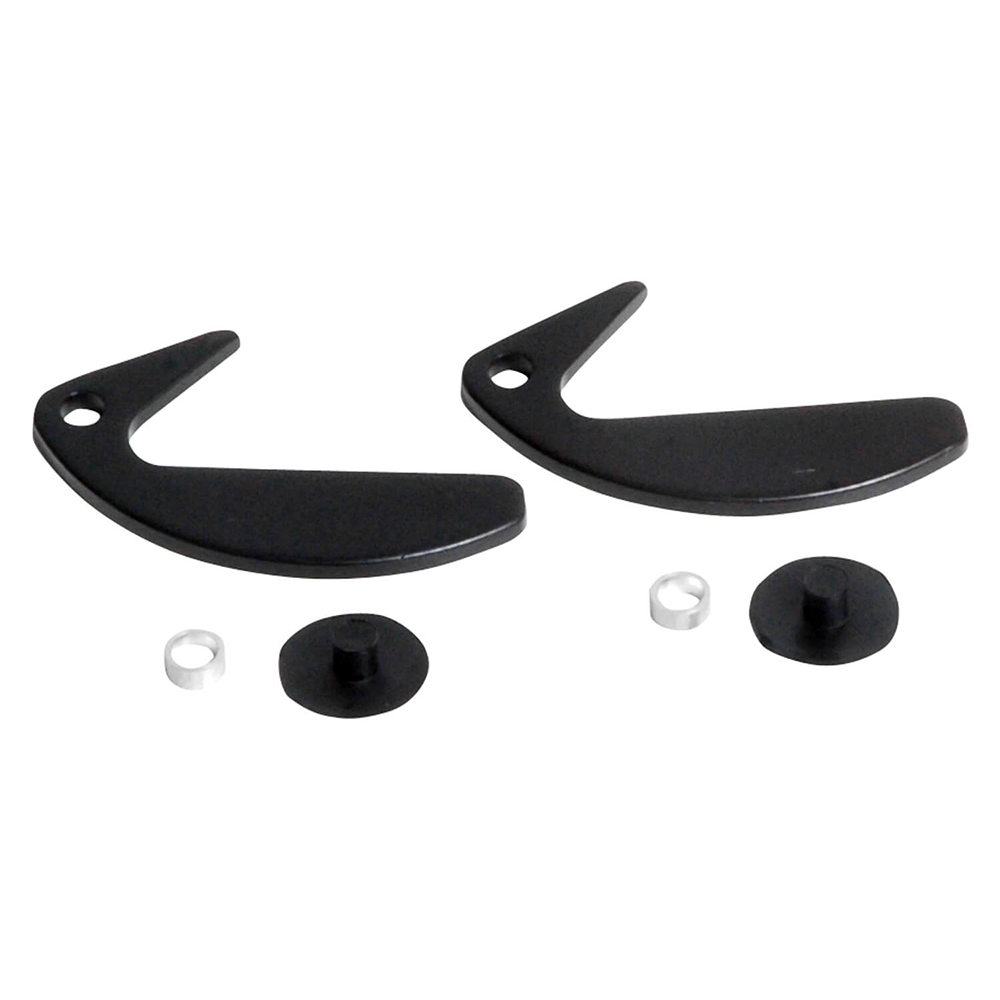

• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Mechanical advance assembly can be locked out for crank trigger systems



Part #
Description
Back Order
Your Price
Qty

MSD8202
MSD8202
Coil Blaster 2 45,000 max volts red finish (Use with MSD8213
No
$164.29 (incl Gst)
Install Instructions
Installation Instructions










Fitment

You Might also like...

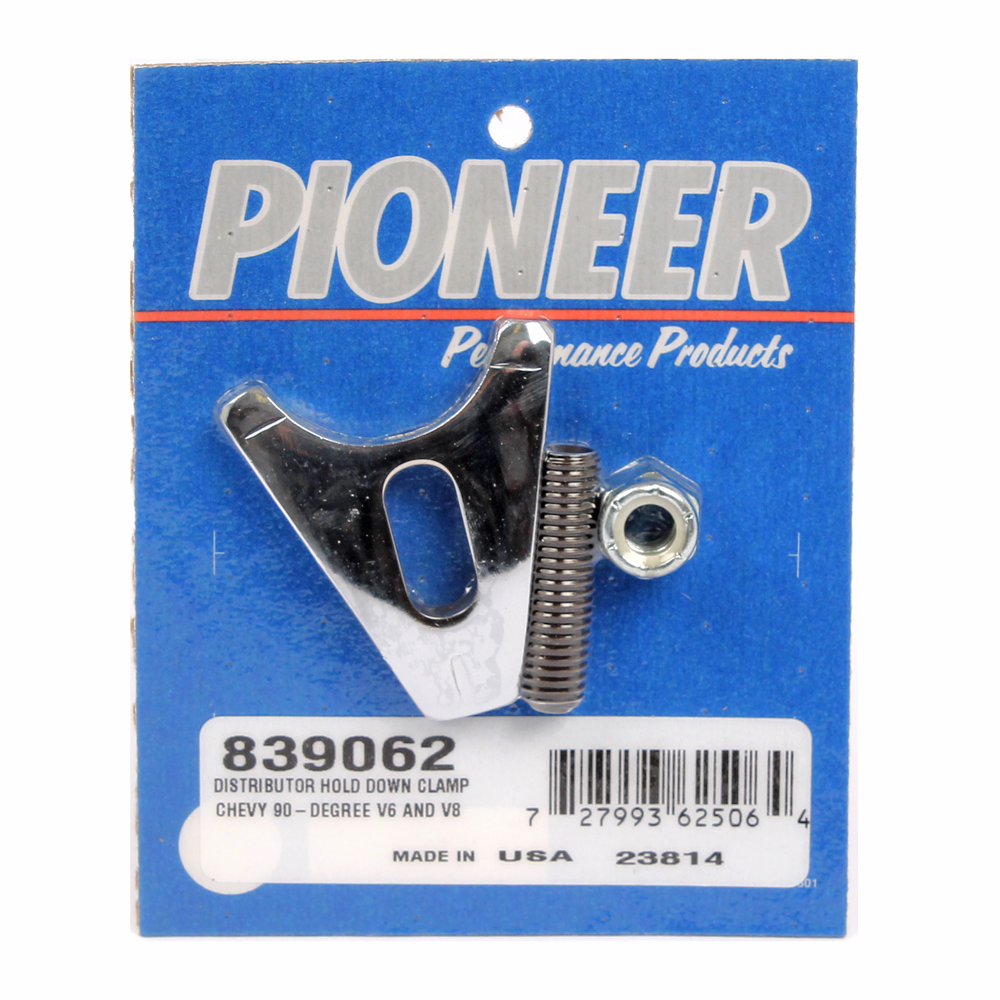

Distributor hold down clamp Chev V8 chrome plated


View Part No : PIO839062

MSD Ignition 6425 - 6AL Ignition Control

Digital ignition control 6AL with soft touch rev limiter sim


View Part No : MSD6425


Coil E-core street Blaster SS, red finish MSD Ignition 8207


View Part No : MSD8207


Starter Motor Chev SB BB V8 super hi-torque 2.0kw/2.65hp com


View Part No : STARTERCHEV

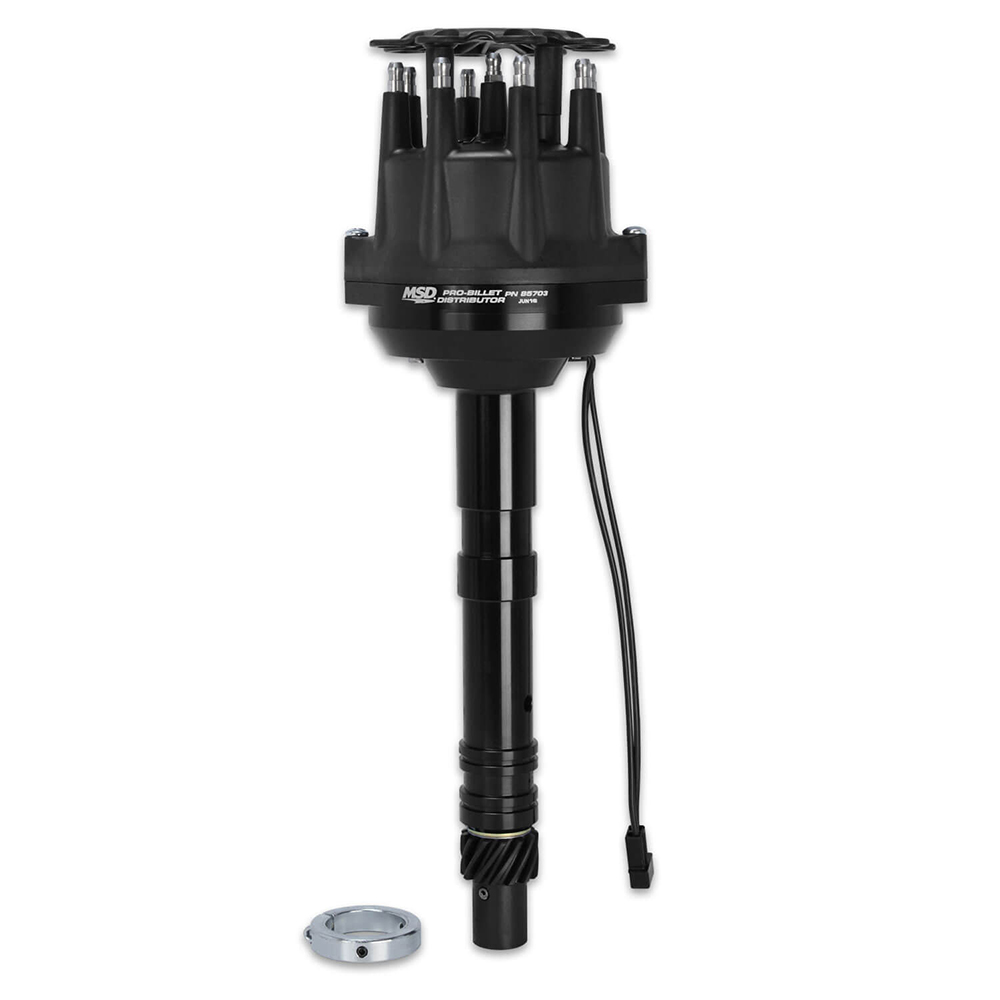

MSD 85703 Distributor Chev V8 pro-billet
