Distributor Ford 302ci 351ci Cleveland & 429ci 460ci BB V8 p


No Brand
Part No: MSD85804
Distributor Ford 302ci 351ci Cleveland & 429ci 460ci BB V8 pro-billet Must use with 6al or similar ignition control,13mm OD below drive gear, Low profile, crab cap, magnetic pickup distributor ideal for clearing blower snouts MSD 85804
Additional Notes:
Availability:In Stock
$1,145.94 (incl Gst)
$1,031.34 (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $896.82

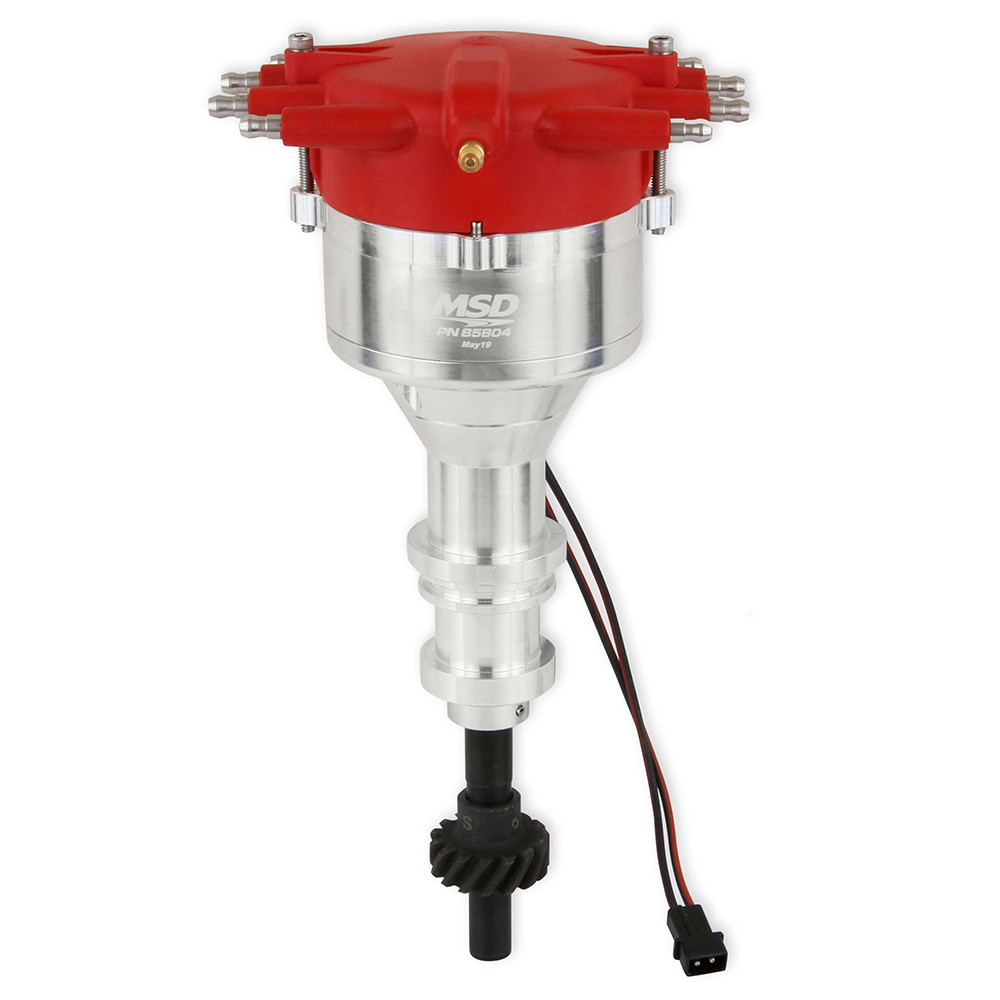

MSD Ignition Ford 351C - 460 Crab Cap Distributor
Low profile, magnetic pickup distributor ideal for clearing blower snouts, and for any application where height is critical.

Ford owners with distributor clearance issues due to blowers, air cleaners, or any other parts interference will love MSD's low profile, crab cap style distributor. The use of a crab cap allows the spark plug wires to exit the side of the distributor cap significantly lowering the overall height.

Ford crab cap distributors are built on the proven foundation of the MSD Pro-Billet distributor line. They rely on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly.

Features:
• Low Profile, crab cap for optimal clearance in tight areas
• Supplied with a STEEL distributor gear, compatible with MOST hydraulic roller cam applications
• Must be used with an MSD Ignition Control
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate for strength and durability
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• CNC machined billet aluminum housing and billet aluminum base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings provide the ability to create a timing curve perfect for your engine



Part #
Description
Back Order
Your Price
Qty

MSD8202
MSD8202
Coil Blaster 2 45,000 max volts red finish (Use with MSD8213
No
$135.45 (incl Gst)
MSD8207
MSD8207
Coil E-core street Blaster SS, red finish MSD Ignition 8207
No
P.O.A. (incl Gst)
MSD8010
MSD8010
Distributor hold down clamp Ford V8, Billet cnc machined ste
No
$190.93 (incl Gst)
Install Instructions
Installation Instructions










Fitment

You Might also like...


Dielectric grease .33oz (9.4g) tube Permatex 81150


View Part No : DYN49634

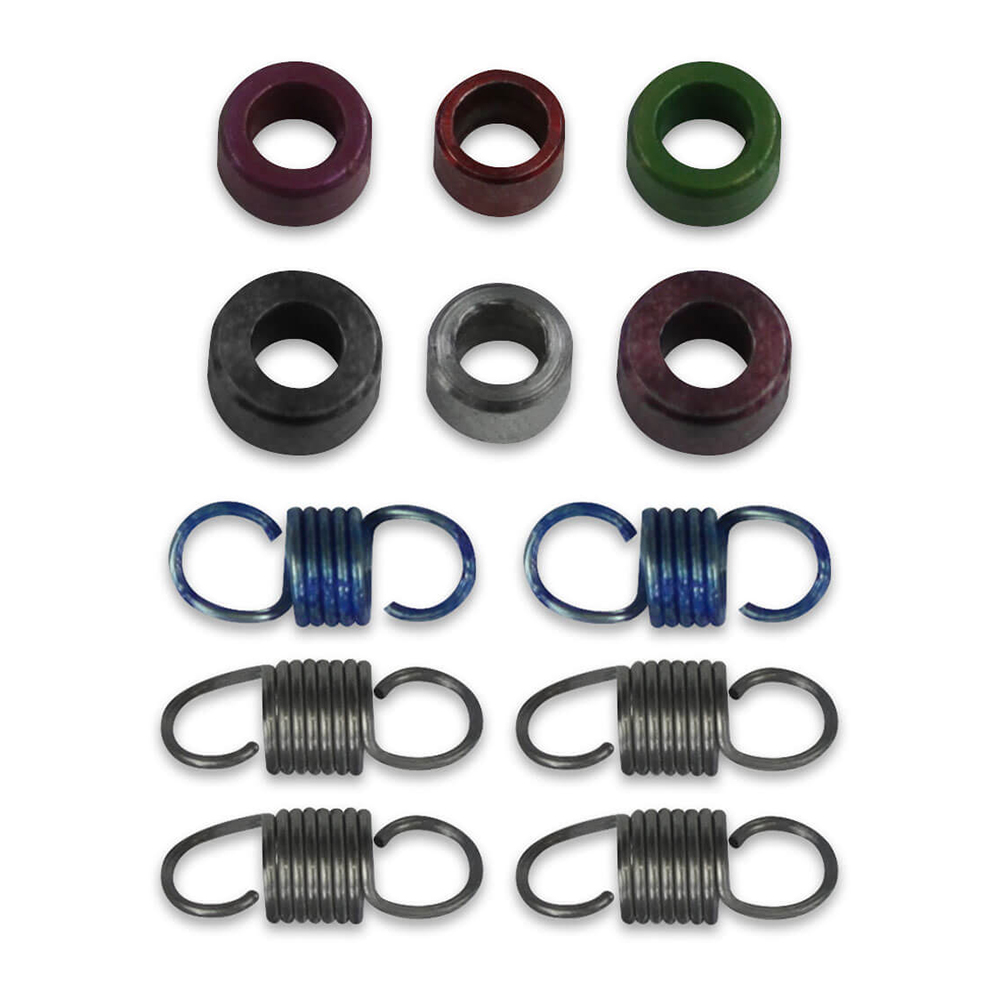

MSD 8464 Bushing and Spring Set

Distributor spring advance bush & spring curve kit fits all


View Part No : MSD8464

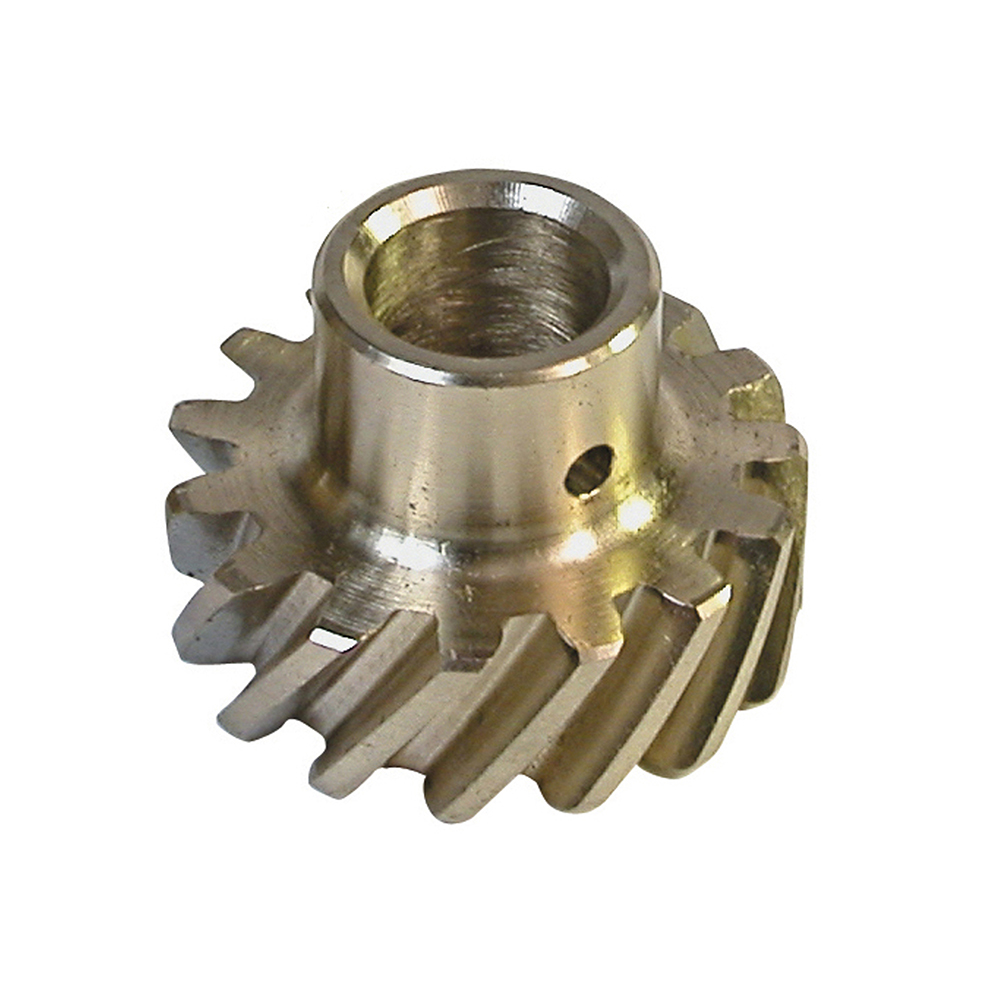

MSD Ignition 8581 Pro-billet Distributo

Distributor gear Ford 302ci 351ci Cleveland & 429ci, 460ci B


View Part No : MSD8581

MSD Ignition 84661 Magnetic pickup

Ignition magnetic pickup assembly comes with two pin connect


View Part No : MSD84661

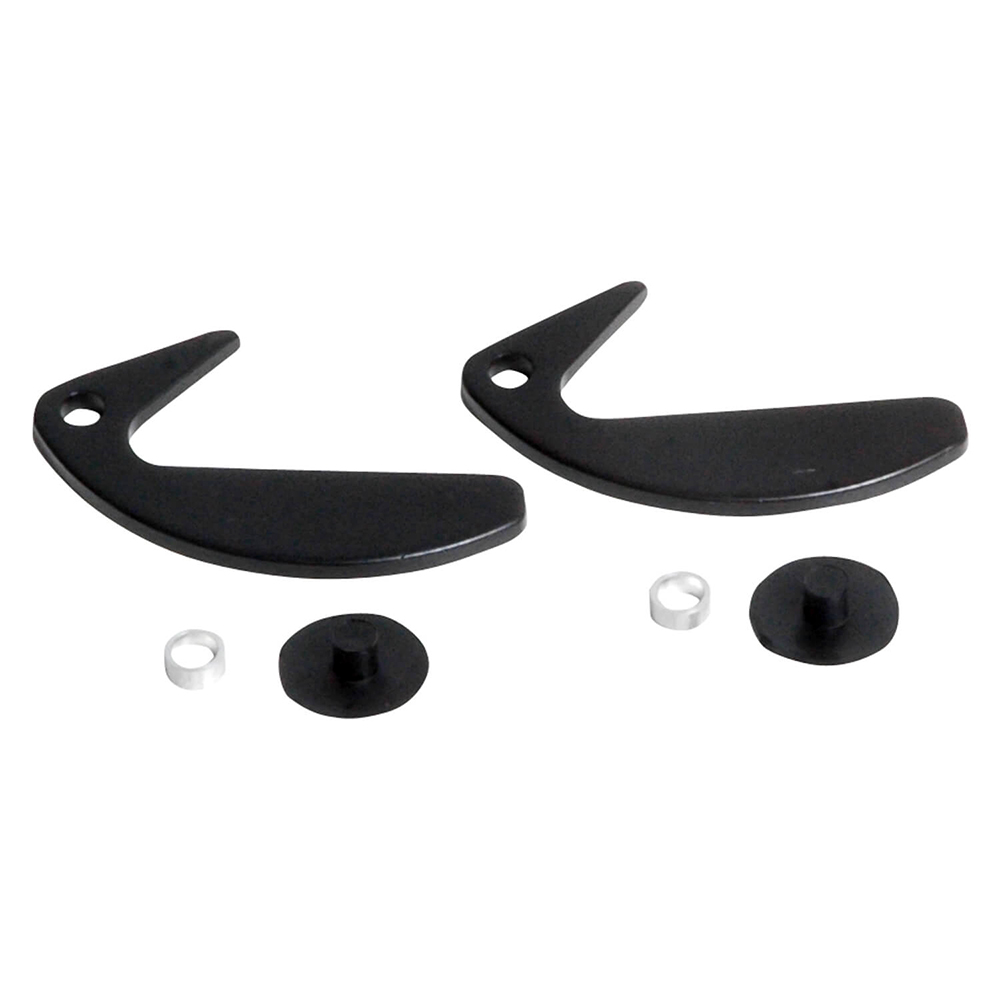

Distributor advance weight kit fits all billet and pro bille
