Engine Chev 350, 5.7L V8 1996-02 vortec stock replacement fo


No Brand
Part No: GM12530283

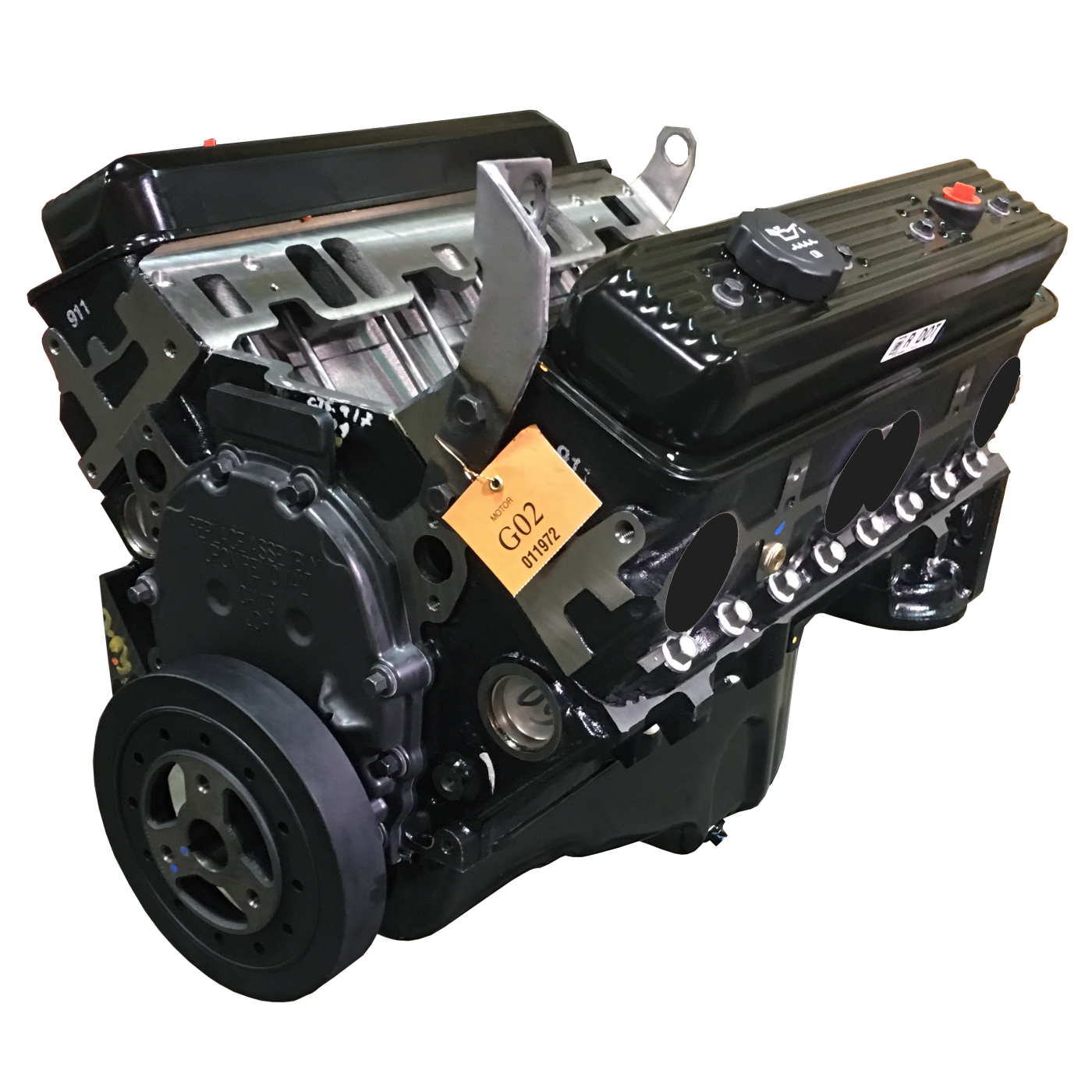

Engine Chev 350, 5.7L V8 1996-02 vortec stock replacement for GM Trucks 4 bolt, 250hp, 330ft-lbs torque, 9.4:1 compression ratio, hydraulic roller cam L31 HD GM 12681431 12691672
Additional Notes:
Availability:Out of Stock

P.O.A. (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $7,378.71
Nothing compares to a Factory Original new GM Crate Engines when it is time to replace the worn out 350ci Vortec engine in your 1996 thru 2002 Chevrolet or GMC pick-up and Vans. Part number 12530283 is the Heavy Duty replacement engine direct from GM Powertrain and fits most 3/4 and 1- Ton G-Series Vans, P-Series Trucks, Silverado's, Sierra's, and Suburban's. The Vortec HD version 350 uses a 4-Bolt main block, upgraded exhaust valves and cylinder heads for heavy duty applications. This engine is not intended for marine usage. This engine features new components, brand new complete long block engine.

Features:
• 1986-2000 style block, 4 bolt mains
• 1pc rear seal nodular iron crankshaft
• Powdered metal connecting rods
• Hypereutectic pistons 9.4:1 compression Ratio
• Hydraulic roller camshaft: Int Lift .414", Exh Lift .428", Int Duration @.050" 191, Exh Duration @ .050" 196, Lobe Centerline-111
• Vortec cylinder heads - 64cc, 1.94'' intake valve, 1.50'' exhaust valve
• Also includes: Oil pan, timing cover, valve covers, harmonic balancer



Part #
Description
Back Order
Your Price
Qty

ARP430-6801
ARP430-6801

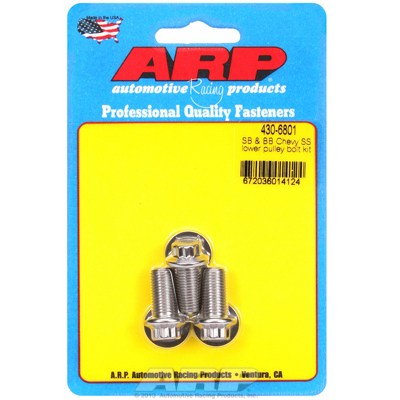

Lower pulley bolt kit SB & BB Chev stainless (3 piece set)
No
$22.39 (incl Gst)
ARP434-2102
ARP434-2102

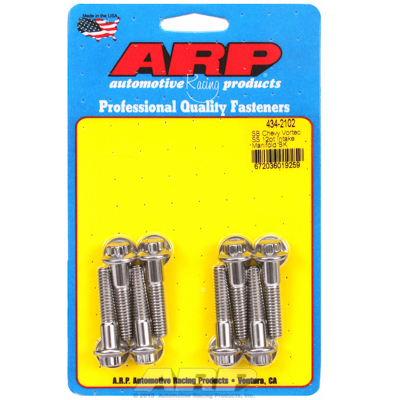

Intake manifold bolt kit Chev SB Vortec fits most aftermarke
No
$69.14 (incl Gst)

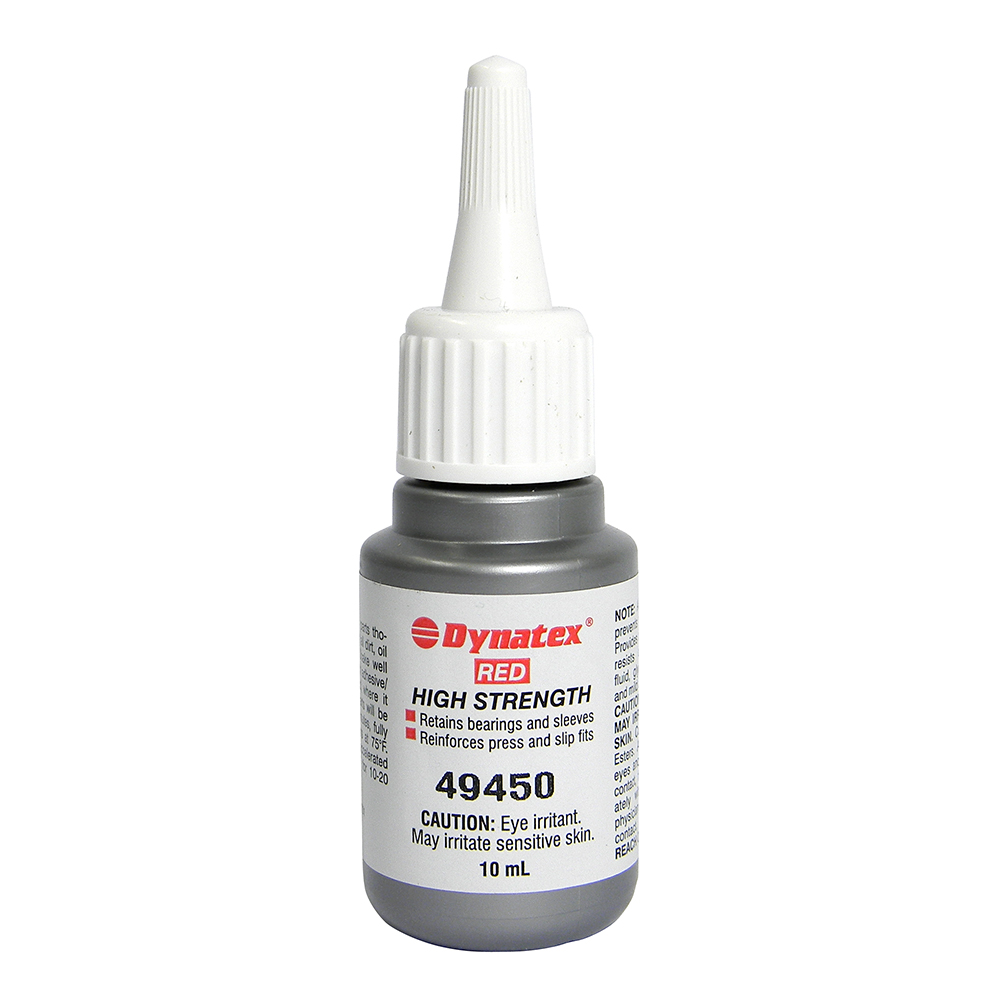

DYN49450
DYN49450
Dynatex bolt locker red medium high strength (10ml) bottle (
No
P.O.A. (incl Gst)

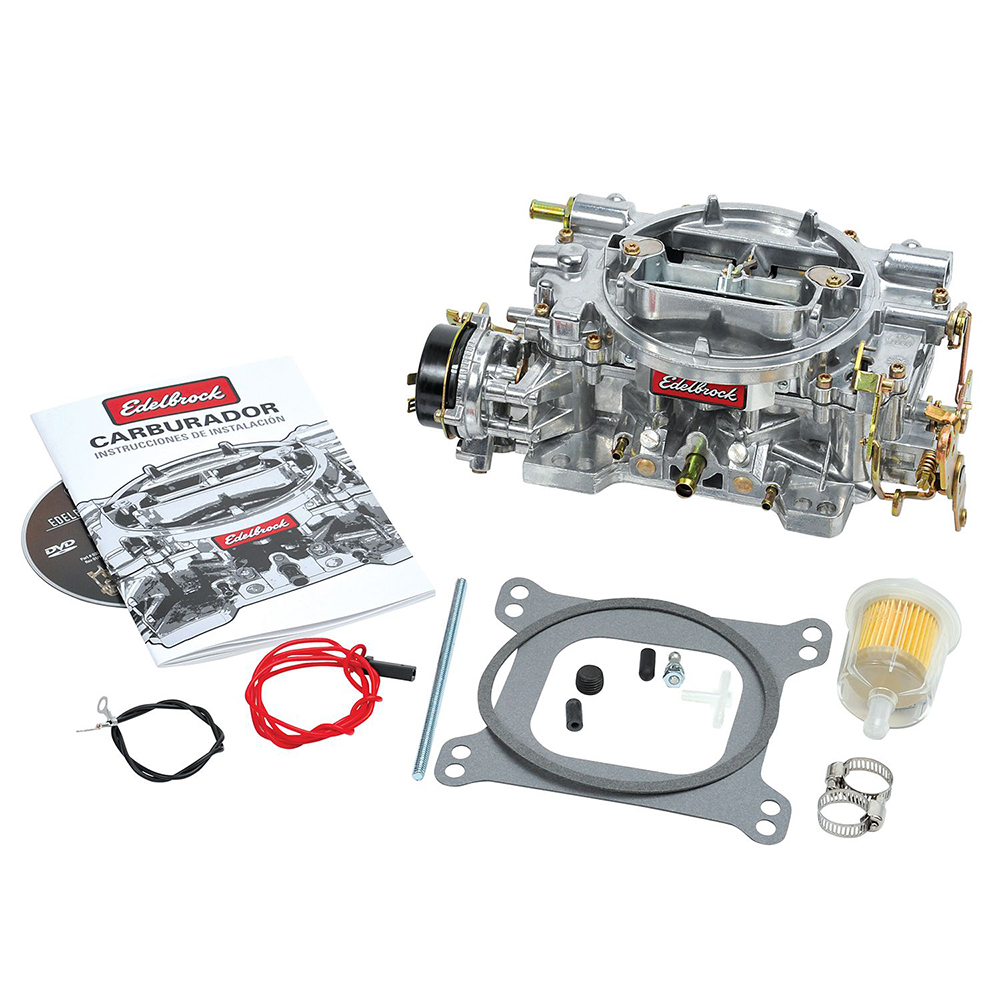

E1411
E1411
Carb 750 cfm performer series electric choke square bore
No
$1,067.06 (incl Gst)
E2116
E2116
Intake manifold Chev SB performer vortec idle-5500 Rpm dual
No
P.O.A. (incl Gst)
M8548201CMH
M8548201CMH

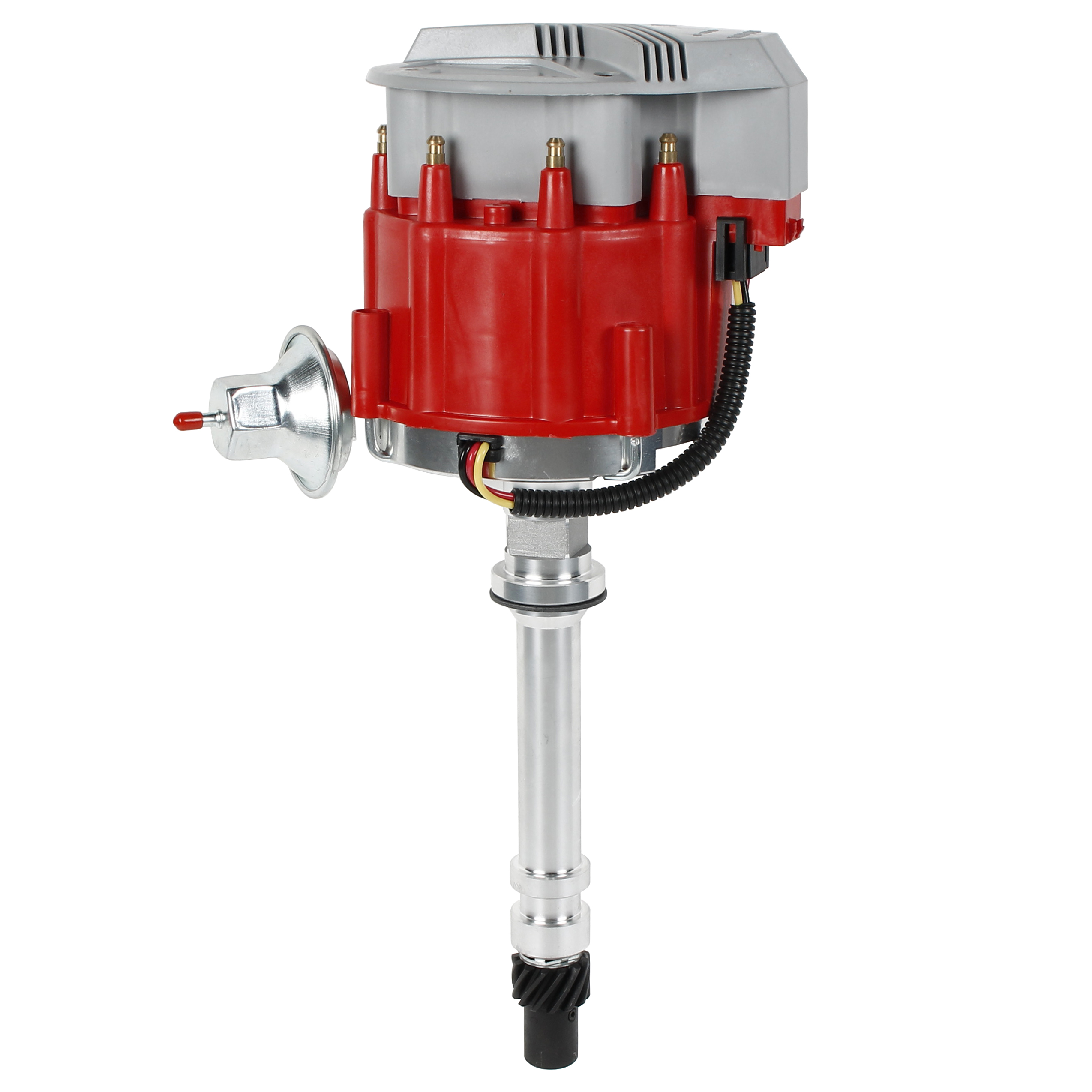

Distributor Chev V8 HEI vacuum advance with high performance
No
$149.50 (incl Gst)
MRG6238
MRG6238

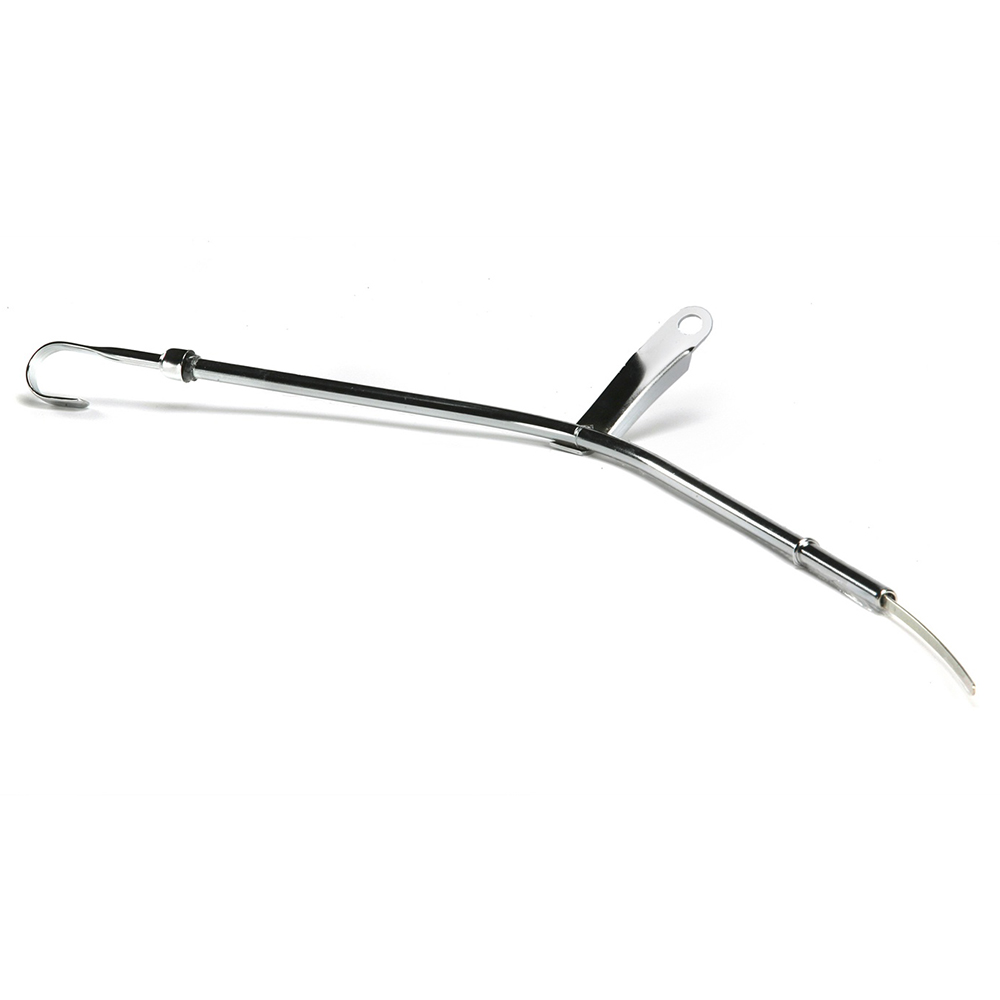

Dipstick & tube chrome Chev SB V8 1982-85 Camaro, Firebird
No
$41.52 (incl Gst)
MS90131-2
MS90131-2
Manifold gasket - inlet Chev 305ci 5.0L 350ci 5.7L SB Vortec
No
$82.90 (incl Gst)
OFYCC-6502
OFYCC-6502
Filter oil Chev V8 (short) similar to Z40
No
P.O.A. (incl Gst)
RP11487
RP11487
Royal Purple break-in oil 10W30 1qt (946mls) combines highly
No
P.O.A. (incl Gst)

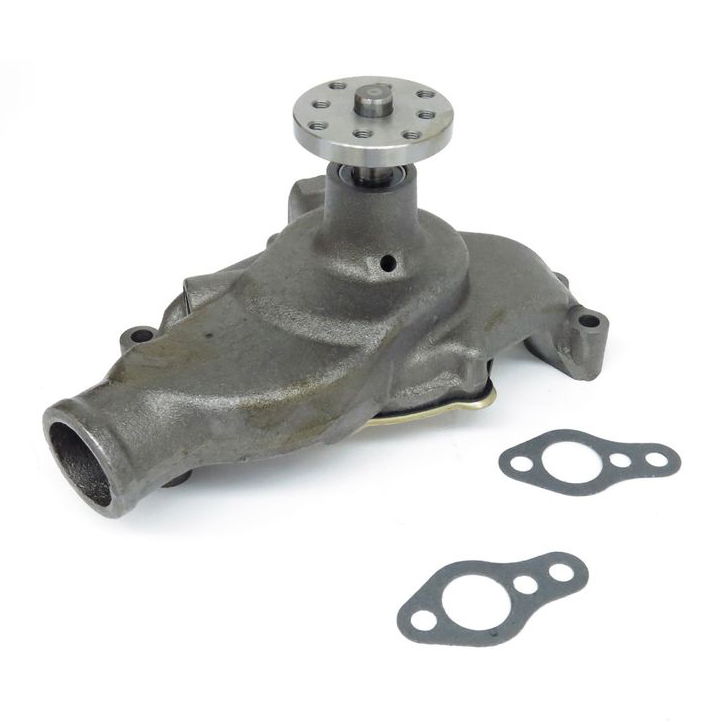

WP401US
WP401US
Water pump Chev 283, 327 SB short style approx 145mm from fl
No
$108.96 (incl Gst)
E2561
E2561
Intake manifold Chev 396ci 402ci 427ci 454ci 502ci BB small
No
P.O.A. (incl Gst)
FEL17420
FEL17420
Manifold gasket - exhaust Chev SB 305ci 5.0L 350ci 5.7L V8 (
No
$46.01 (incl Gst)

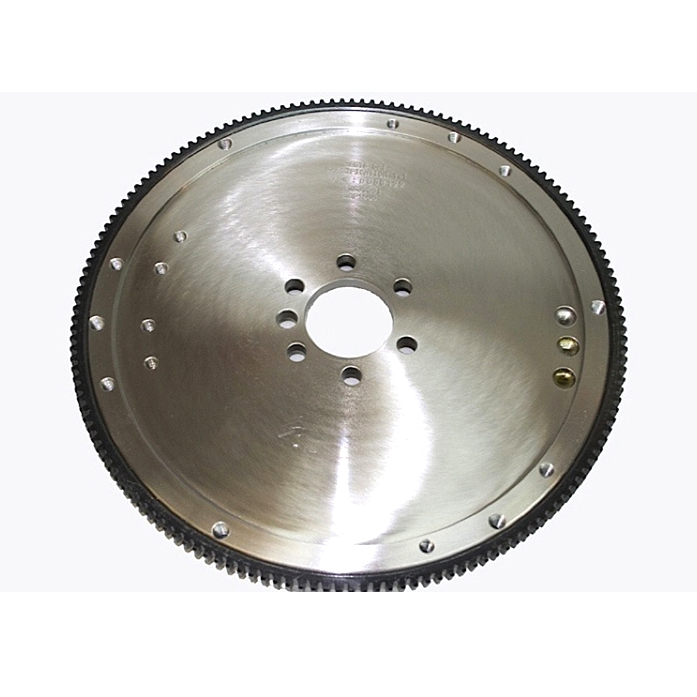

PRWFW-305L
PRWFW-305L
Flywheel Chev 305, 350 153 teeth 13" counterweighted suit 1
No
$688.62 (incl Gst)
MU350
MU350
Multi gasket Chev SB 283ci, 305ci, 307ci, 327ci, 350ci, 400c
No
$10.20 (incl Gst)
CFRHZ-9601-PBK
CFRHZ-9601-PBK

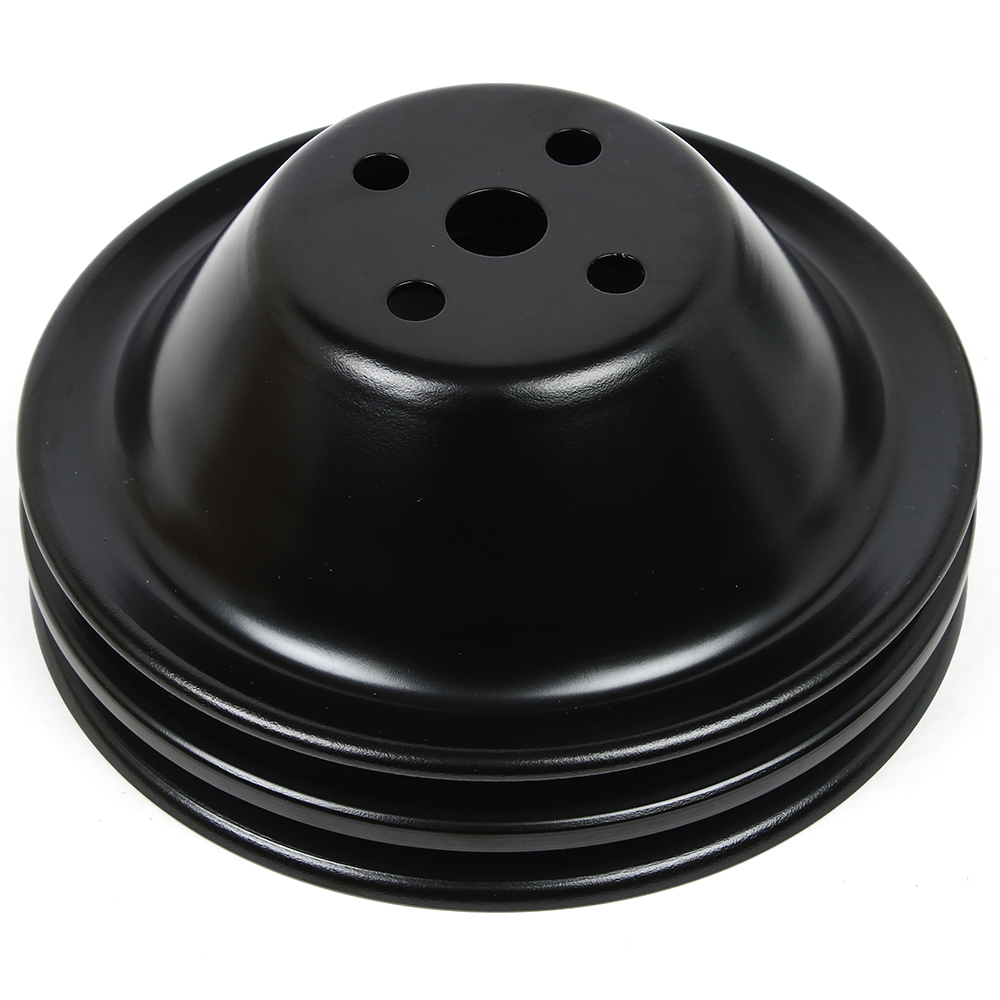

Pulley steel Chev SB 1955-68 short water pump double groove
No
P.O.A. (incl Gst)
CFRHZ-9603-PBK
CFRHZ-9603-PBK

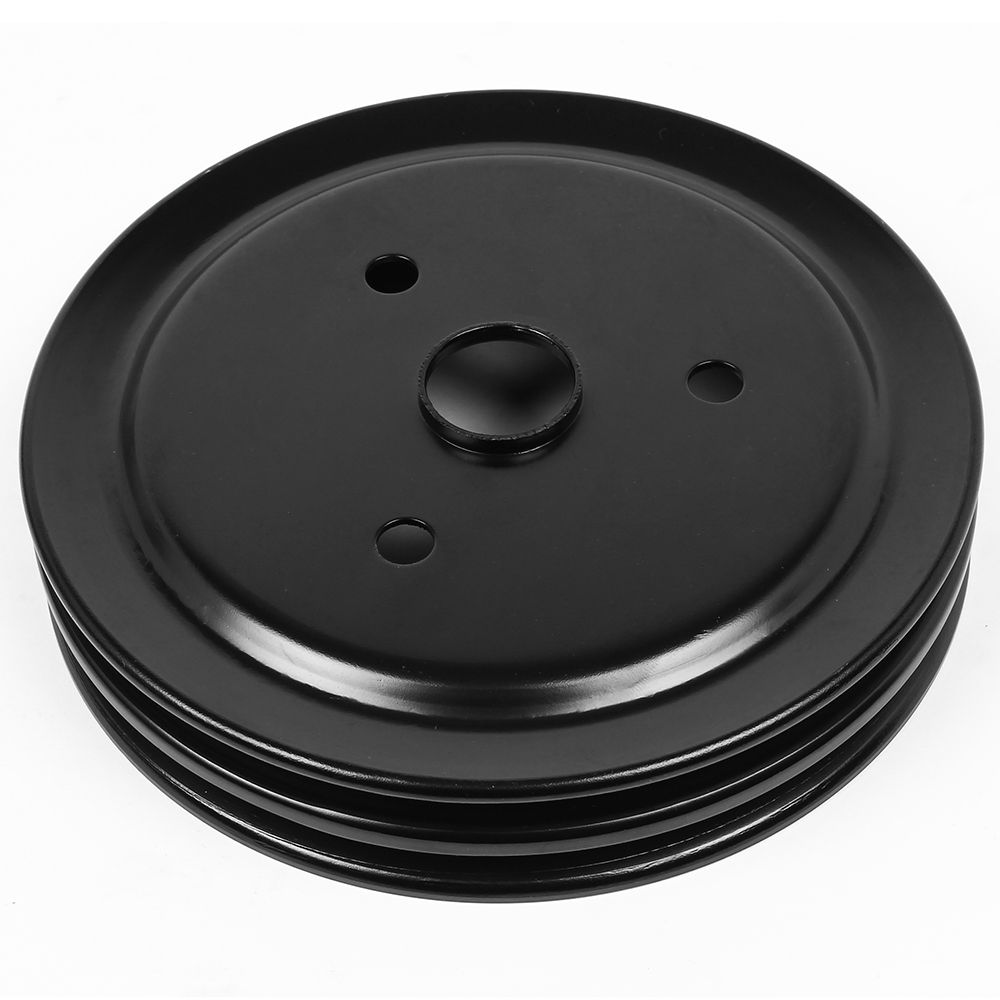

Pulley steel Chev SB 1955-68 short crank double groove 7-3/1
No
$62.66 (incl Gst)
