Engine block Chev BB big M 4.250" bore 10.200" deck height s

Part No: DART31263354

Engine block Chev BB big M 4.250" bore 10.200" deck height steel caps (tall deck) 2 piece rear main Priority main oiling 4.625" max bore Dart Block 31263354 / 31213354

Additional Notes:

Availability:In Stock

$7,684.53 (incl Gst)

Qty:

Add To

	Instock	Quantity



	Your Price	$6,682.20

Product Info
Features
Accessory Products
Replacement Products
PDFs
Suggested Products

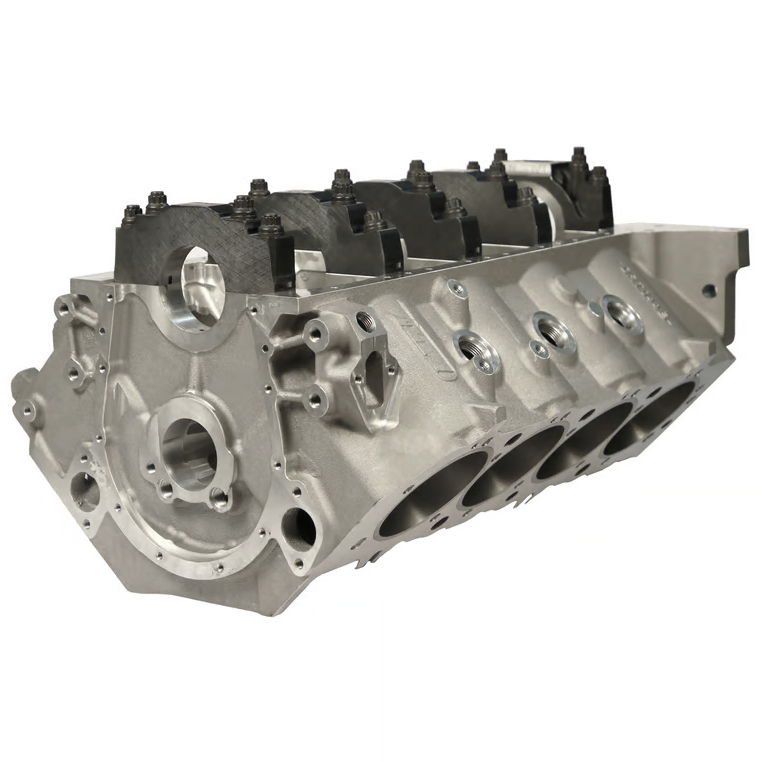

Dart Big M Chevy Big Block
With multiple deck heights and bore sizes up to 4.600", the Big M block gives you the versatility to build a wide variety of engine combinations. A true priority main oiling system oils the main bearings before the lifters for extra reliability.

Features:

• Standard 9.800" and tall 10.200" deck heights available for stroker engines.
• Standard 4.250" , 4.500" or 4.600" bore sizes with siamesed extra thick cylinder walls to resist cracking and improve ring seal (minimum .300" thick with 4.625" bore).
• Uses +.300" tall Gen VI style lifters. Modification for Gen IV style available.
• Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to equalize temperatures.
• 4 bolt billet steel main caps have splayed outer bolts for extra strength
• True priority main oil system lubricates the main bearings before the lifters. Our stepped main oil gallery (9/16" to 1/2" to 7/16") increases the flow of oil to the crank at high rpm, and our front oil crossover eliminates internal oil leaks around the distributor shaft.
• Oil filter pad is drilled and tapped for an external oil pump.
• Available in traditional Gen IV style, or in Gen V or Gen VI style with piece rear seal.
• Lifter valley head stud bosses prevent blown head gaskets.
• Rear main cap uses standard oil pump and two piece seal - no adapter required!
• Mechanical fuel pump boss, clutch linkage mounts, and side and front motor mounts simplify installation in any chassis.
• Dual oil pan bolt patterns fit standard and notched oil pans.
• Coated cam bearings, freeze plugs and dowels are included.

Filters

Feature Group	Description	Value
BRANDS	Dart Blocks
FREIGHT OPTIONS	Oversize Item 2
