Holley Dominator EFI ECU Works with 4, 6, 8 and 10 cylinder

Part No: HOL554-114

Holley Dominator EFI ECU Works with 4, 6, 8 and 10 cylinder engines 554-114

Additional Notes:

Availability:Out of Stock

P.O.A. (incl Gst)
P.O.A. (incl Gst)

Qty:

Add To

	Instock	Quantity



	Your Price	$4,843.13

Product Info
Features
Accessory Products
Replacement Products
PDFs
Suggested Products

Holley Dominator EFI ECU

The new standard in EFI with virtually unlimited capabilities! Integrated transmission control, drive by wire throttle control, dual wideband oxygen sensor capability, extensive amount of inputs and outputs for various combinations, and much more.

Dominator® EFI Vehicle Management Systems are intended for all engine applications, from street to unlimited high-end racing applications. In addition to the transmission control, drive by wire, and dual wideband oxygen sensor options, Dominator® systems have nearly unlimited capabilities to control any power adder, input, or output you can throw at them. Need to run a turbocharged, nitrous injected 8 cylinder running water-methanol injection? o problem with Dominator® EFI. How about control a 4L60E transmission as well as the fuel and spark on your street rod? No problem. There are also enough inputs and outputs to allow the Dominator® VMSs to serve as their own data acquisition and control module. The Dominator® VMS will eliminate the need for additional controllers as they are all contained in this one unit. The only thing limiting the Dominator® Vehicle Management System is your imagination!

Features:
• Works with 4, 6, 8 and 10 cylinder engines
• Ignition Plug and Play with GM LS engines (non-VVT), GM HEI, Ford TFI, and magnetic and hall effect trigger. Custom settings can be configured to allow for use with many other applications
• Integrated electronic transmission control - Operates GM 4L60E and 4L80E transmissions with more to come in the future
• Integrated drive by wire throttle body control - Can control two drive by wire throttle bodies. Compatible with a number of DBW throttle bodies including GM, Chrysler, Ford, and Nissan
• Integrated dual channel wide band oxygen sensor controls – For monitoring both engine banks (NTK or Bosch sensors)
• Extensive amount of inputs and outputs allow for limitless combination of options. Allows for unit to be used as a complete data acquisition system as well
• Twelve sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 24 low or high impedance injectors as a standard feature. Multiple staged injector strategies
• Twelve channel Distributorless Ignition (DIS) outputs capable of directly driving “Smart” ignition coils or Holley DIS coils. Will drive 2 wire coils with addition of PN 554-112 high current coil driver module
• Speed density, Alpha-N, Alpha-N Combination, and VE fueling strategies – Tuner has the option to select from a variety of load sensing strategies to meet their engine requirements or tuning preference
• Individual cylinder fuel and spark control allows you to unlock your engine’s potential
• Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
• Advanced idle, closed loop, and enrichment strategies allow for very stable engine operation
• 1-5 Bar MAP sensor capability – For naturally aspirated or boosted applications
• Fuel Map and Learn Function Smoothing – Helps to smooth rough areas of the maps
• Configurable User Password Protection – “Lock” your tune to prevent tampering
• Self-tuning fuel table strategy greatly simplifies tuning process – The more you drive it, the more it learns
• “Quick Start” strategies – For faster engine starting
• Allows for use of common OEM sensors as well as custom sensor calibration input
• Two channel knock control sensor inputs for both one or two wire knock sensors
• Dedicated fuel and oil pressure inputs
• Controls both stepper and PWM Idle Air Control (IAC) motors
• 3 Rev Limiters – Choose between 4 options for each: Fuel Only, Spark Only, Fuel and Spark, or Soft
• Traction Control – Allows power reduction via timing, nitrous percentage or boost (Requires Davis Technologies Holley Module)

Hardware
• ECU is fully potted and can be mounted in the engine compartment or interior
• Sealed automotive and marine grade connectors
... AND MORE!

Filters

Feature Group	Description	Value
BRANDS	Holley Performance Products

You Might also like...

0-100 PSI Stainless Pressure Sensor Holley 554-102

View Part No : HOL554-102

Coolant Temperature Sensor Holley 534-10

View Part No : HOL534-10

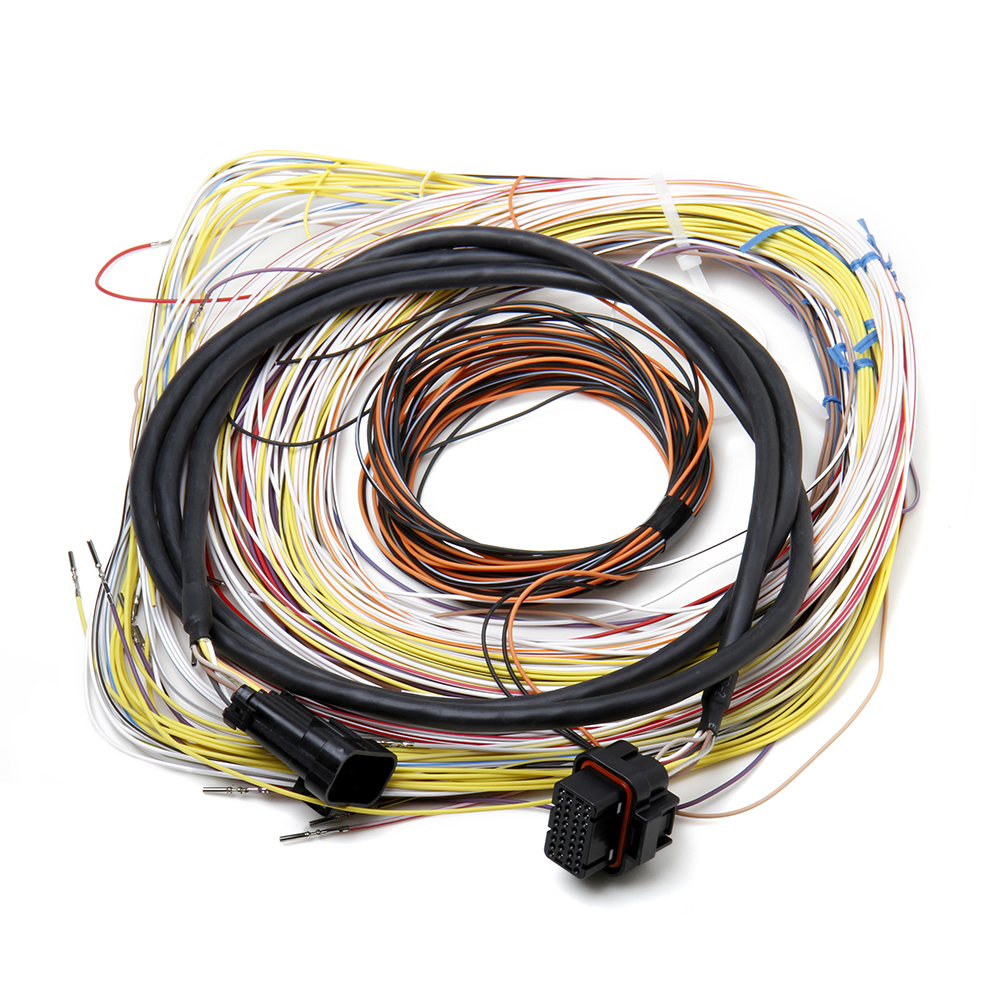

Holley ECU Dominator EFI Connector J2A Auxiliary Harness
