Engine Chev LS364 6.0L 364ci V8 engine 450hp lbs-ft torque a


No Brand
Part No: GM19370163

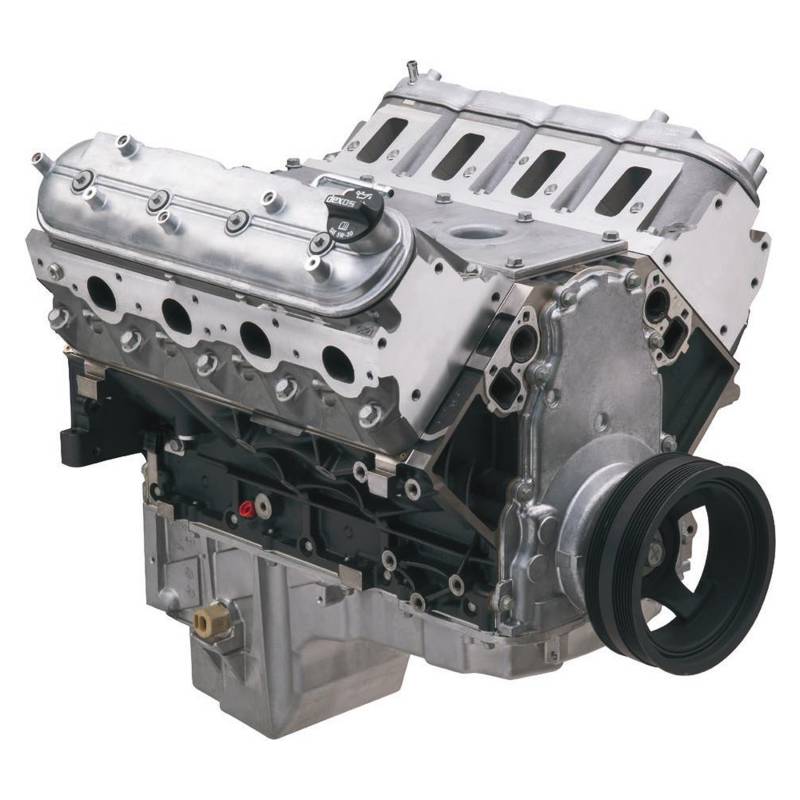

Engine Chev LS364 6.0L 364ci V8 engine 450hp lbs-ft torque at 4600rpm 10.3:1 compression, LS3 rectangular port heads (24x reluctor) does not include any electronics, intake manifold, fuel system , ignition GM 19434650
Additional Notes:
Availability:In Stock

$16,792.65 (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $14,602.30
LS Crate Engine by Chevrolet Performance S364 450 6.0L 452 HP

foundation for hot rod builders and enthusiasts looking to give their earlier LS-powered vehicles a high-performance shot in the arm.

Starting with a strong, economical iron cylinder block and durable rotating assembly, the LS 6.0L features the high-lift LS6 camshaft and the deep-breathing LS3 aluminum cylinder heads. It’s a strong combination with exceptional horsepower and a broad torque band. It is also fuel injection-capable, using production-based components.

The LS364/450 is designed with the early-style 24X crankshaft and 1X camshaft sensors, enabling easier retro-fit installation in early LS-powered vehicles, including 1998–2002 Camaros, C5 Corvettes, 1999–2006 full-size trucks and SUVs, and other LS vehicles.

The LS364/450 exclusively as a long-block assembly, without the induction system, ignition system or front-end accessory drive system, allowing builders to transfer components from their early LS-powered vehicle or complete a custom build with the components of their choice. An intake manifold that matches the LS3/L92-style rectangular intake ports is required.

No matter which vehicle you drop the LS364/450 into, its combination of horsepower and value will push your project vehicle to the next level of performance!

INSTALLATION NOTES:
• Assembly does not include any electronics
• Engine is compatible with a vehicle’s existing Gen III controller, but tuning is required
• Includes LQ9 oil pan
• Requires intake manifold matched to LS3- or L92-style rectangular intake ports
• LS3 or L96 production intake manifolds can be used, but require an aftermarket adapter plate for use with early LS three-bolt throttle bodies
• Not intended for marine applications

LS364/450 specs:
Engine Type: Performance LQ9 long block
Displacement (cu in): 364 cu in (6.0L)
Bore x Stroke (in): 4.000 x 3.622 in (101.6 x 92 mm)
Block: Cast iron with 6-bolt block, cross-bolted main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal
Pistons: Hypereutectic aluminum
Camshaft type: LS6 hydraulic roller
Valve lift (in): 0.550 intake / 0.550 exhaust
Camshaft Duration @ .050 in: 204° intake / 218° exhaust
Cylinder Heads: LS3 rectangular port; aluminum, as-cast with 68cc chambers
Valve Size (in): 2.165 intake (hollow stem) 1.590 exhaust (solid stem)
Compression Ratio: 10.3:1 (nominal)
Rocker arms: Investment cast, roller bearing trunnion
Rocker arm ratio: 1.7:1
Recommended fuel: premium pump
Maximum recommended RPM: 6,800
Reluctor wheel: 24x
Balanced: Internal



Part #
Description
Back Order
Your Price
Qty

TRITT456-160
TRITT456-160

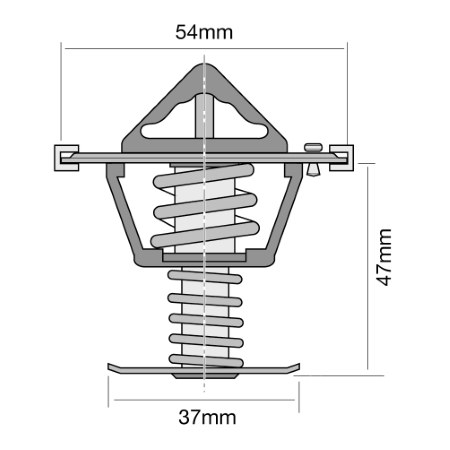

Thermostat 54mm 71C Holden LS1 LS2 (doesn't come with housin
No
$31.91 (incl Gst)
WP6200GMB
WP6200GMB

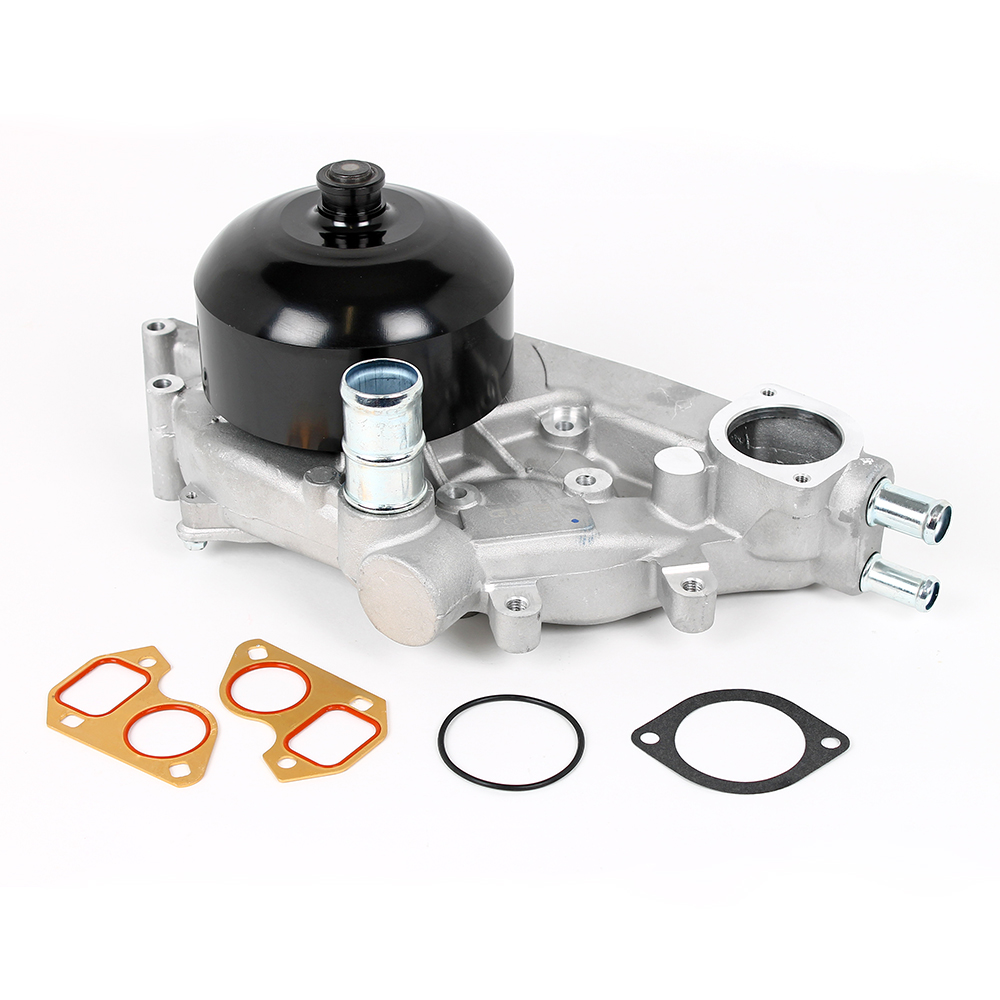

Water pump Holden Chev LS1 5.7L 1999-on GEN IIIVT VX VY som
No
P.O.A. (incl Gst)
CFRHZ-6145-C
CFRHZ-6145-C

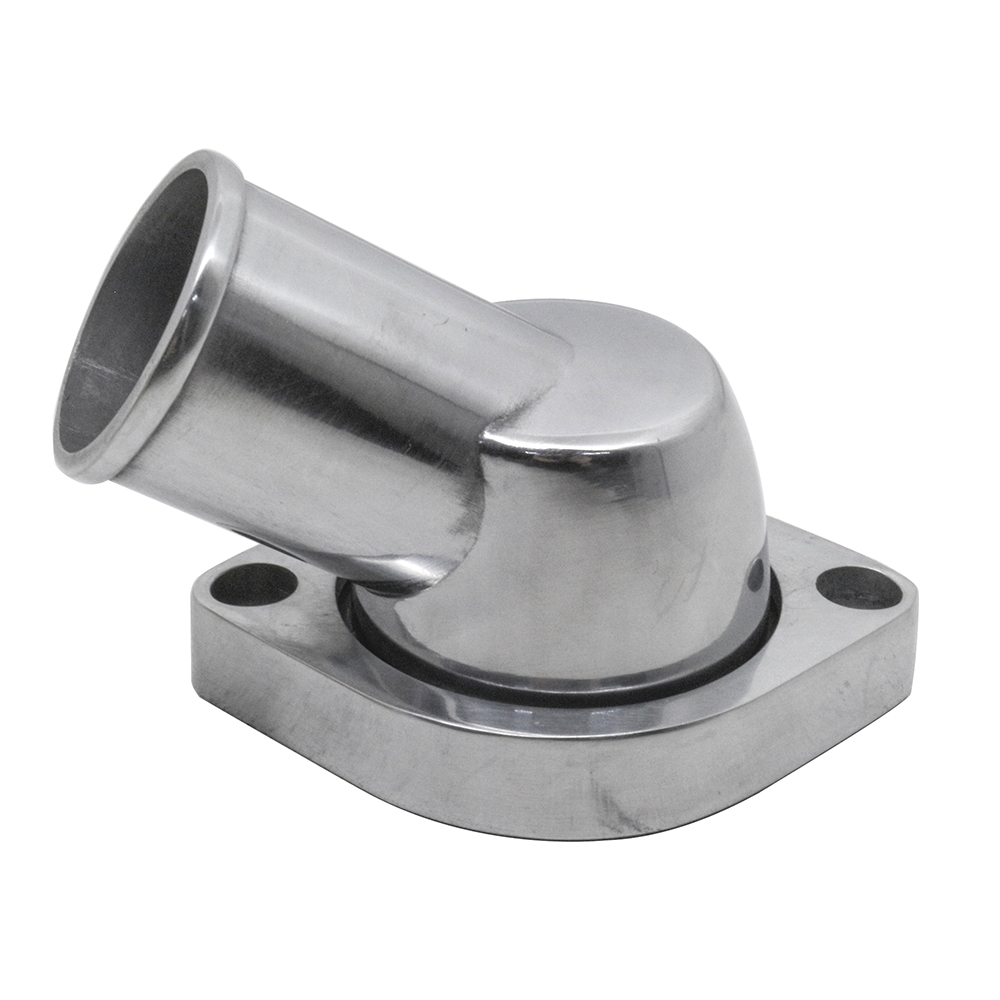

Water neck Chev / Holden LS V8 30 degree swivel polished alu
No
P.O.A. (incl Gst)
HOL302-2MH
HOL302-2MH

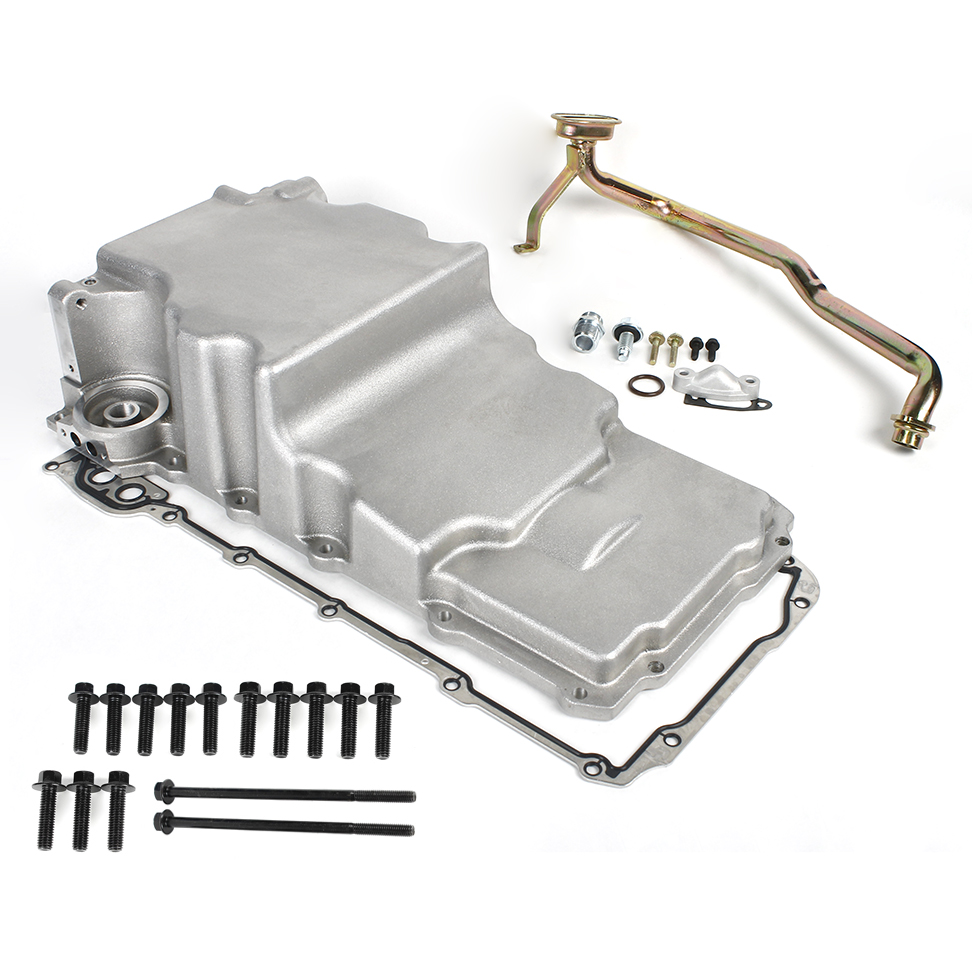

Oil Pan kit Chev Holden LS Retro-fit 1964-87 rear pan suit c
No
$701.16 (incl Gst)
MHDISTCOIL-LS1
MHDISTCOIL-LS1

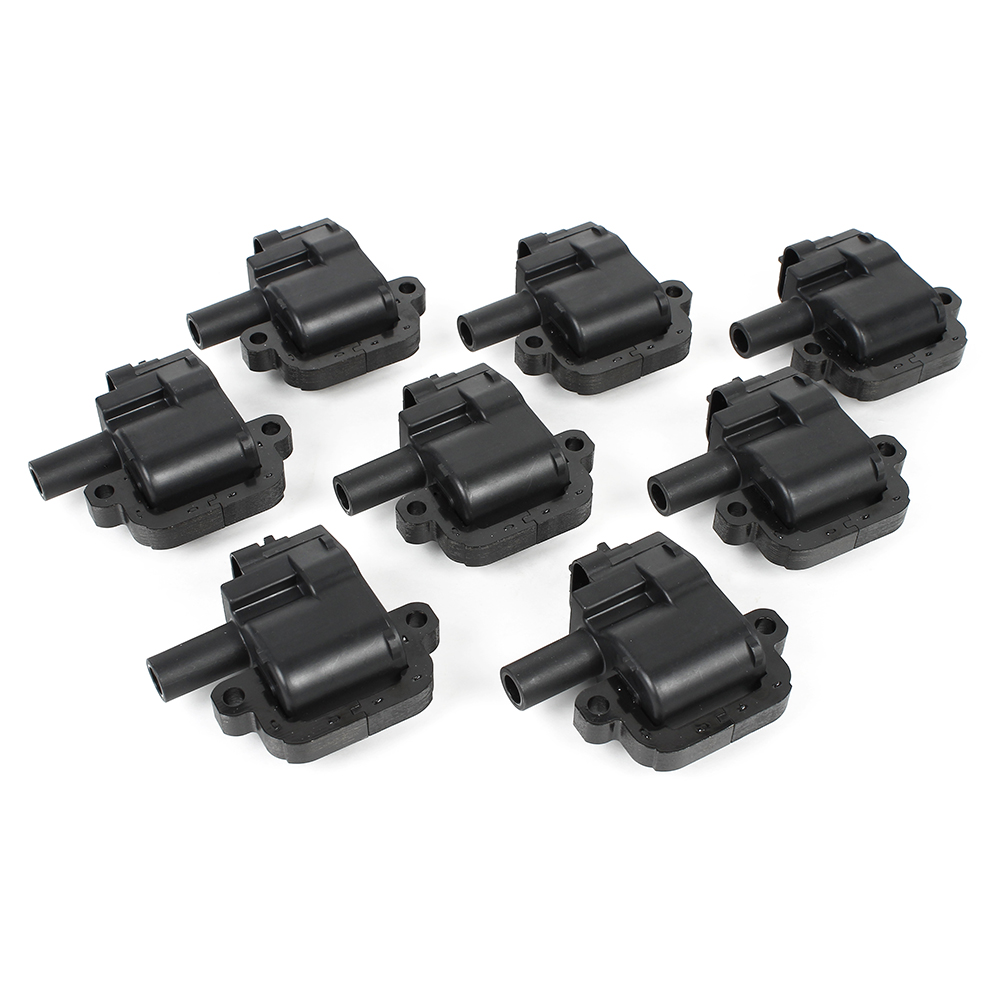

Coil pack Chev / Holden LS 1998-04 cars, 1998-06 trucks, con
No
$493.05 (incl Gst)
Sorry there are no PDF documents for this product







Fitment

You Might also like...

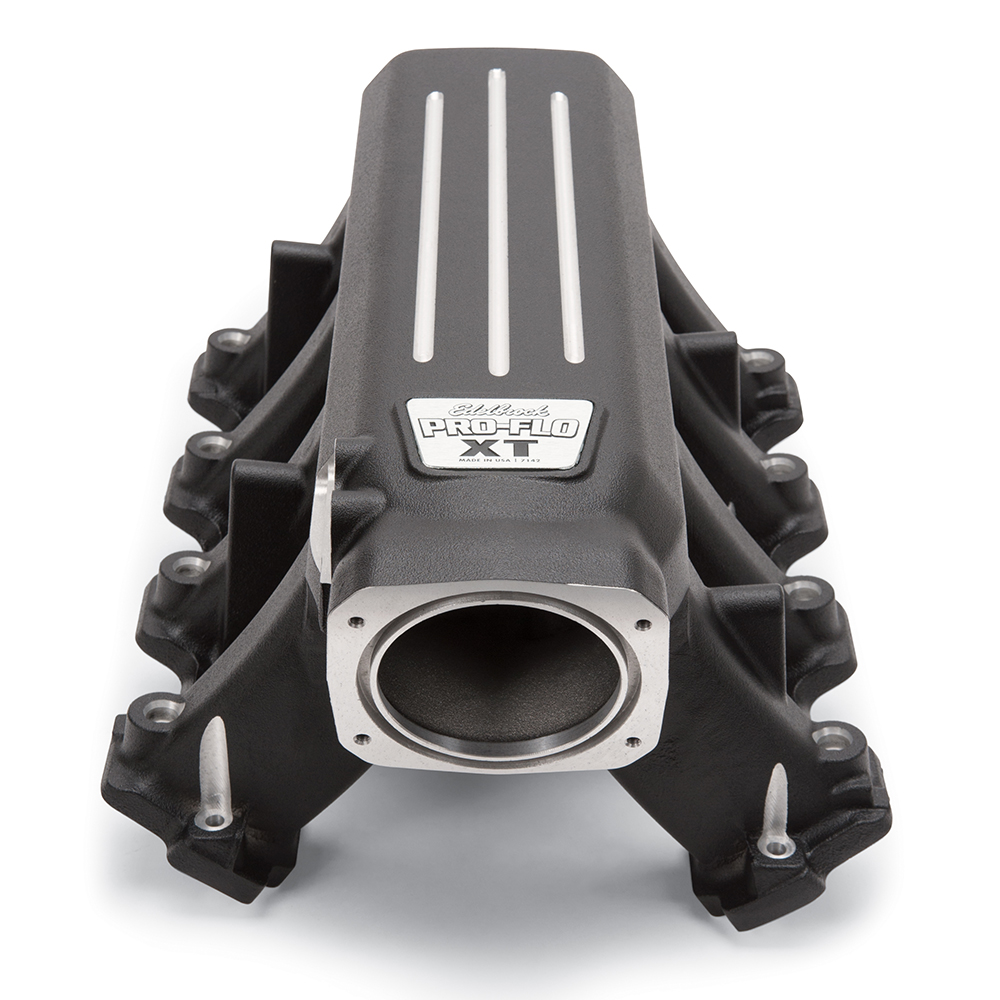

Intake manifold Chev LS3 Pro-flo XT LS3, L92, L76 rectangle


View Part No : E7142

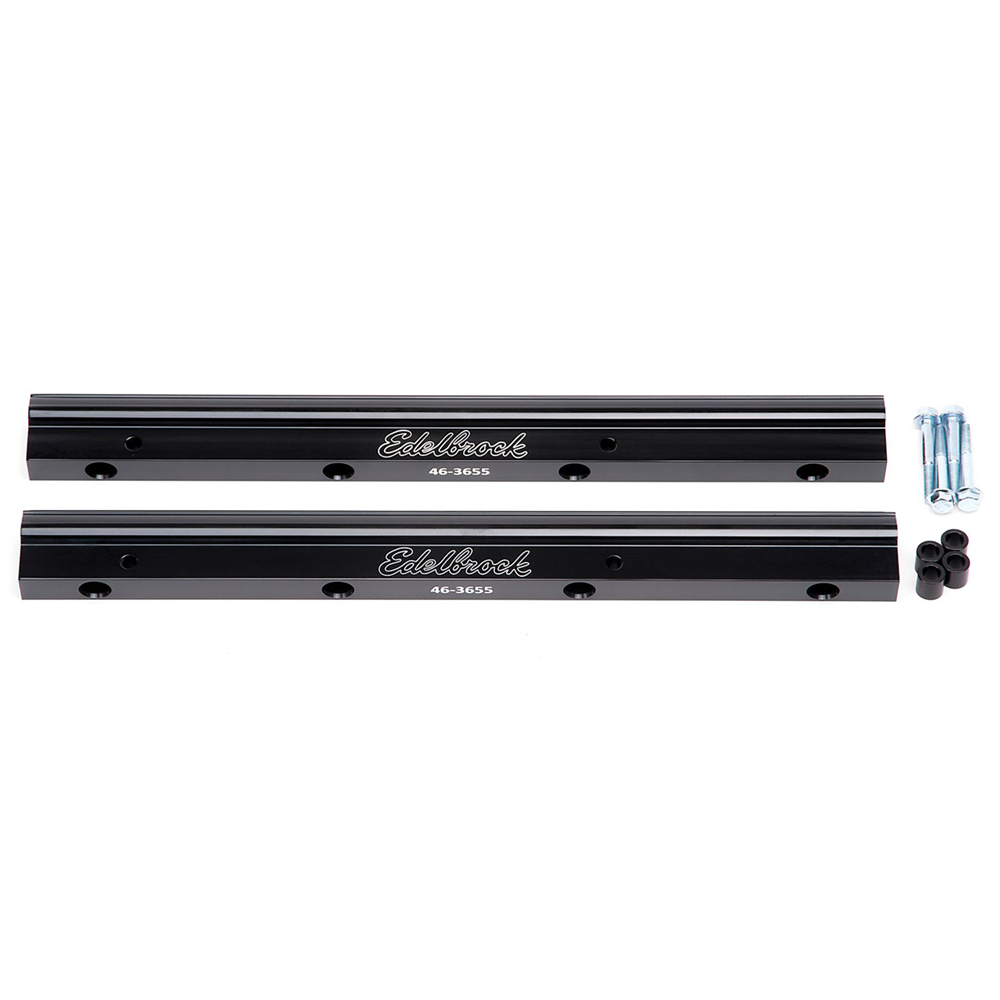

Aluminium fuel rails Chev LS3 use with 7142 XT manifold (pai


View Part No : E3648


Manifold gasket - Inlet Chev Holden 6.0L 6.2L 7.0L LS3 LS7 L


View Part No : MS97151TG

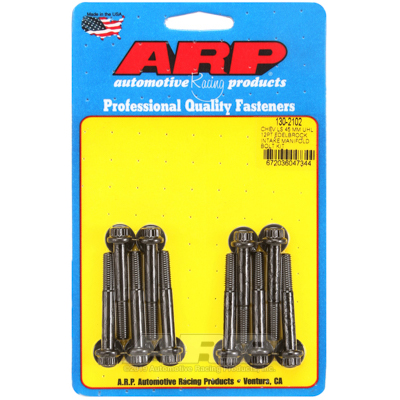

Intake manifold bolt kit Chev Holden LS with Edelbrock intak
