Engine assembly Ford 347ci SB Windsor 360hp, 400lb.-ft. torq

Part No: SVOM-6007-X2347DF

Engine assembly Ford 347ci SB Windsor 360hp, 400lb.-ft. torque, 9.6:1 compression Ford Performance Racing M-6007-X2347DF

Additional Notes: Special Price - Sold with 12 month money back warranty only

Availability:Out of Stock

P.O.A. (incl Gst)

Qty:

Add To

	Instock	Quantity



	Your Price	$21,715.31

Product Info
Features
Accessory Products
Replacement Products
PDFs
Suggested Products

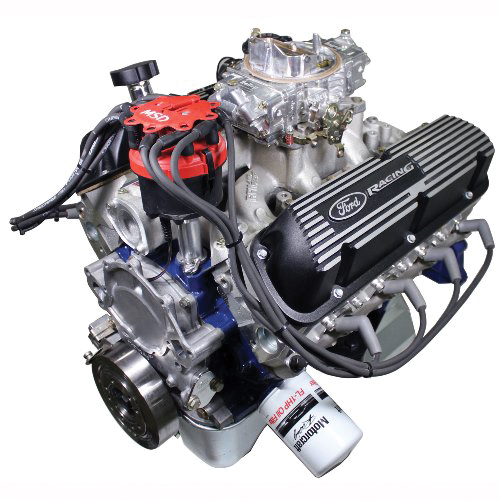

Ford Performance X2347D Street Cruiser-Dressed Crate Engine With X2 Heads-Front Sump Pan

New X2347 Crate Engine features Ford Performance's newest cylinder head, the "X2". The most popular crate engine size just got better and easier thanks to the Engineers at Ford Performance. The proven 347 stroker combination has been optimized for street cruising with a perfectly matched cam – cylinder head – intake manifold and carburetror combination that runs on pump gas. It takes the guesswork and installation issues out of the way with a complete intake and distributor package that has been developed and tested by Ford Performance Engineers. To dress out the X2347D, The Ford Performance Engineers spec’d parts from the best in the aftermarket like Holley®, Edelbrock® and MSD®.

The X2347D is hand assembled with all new parts including Ford Performance “X2” heads and internals from some of the best aftermarket performance parts manufacturers. The BOSS 302 block is bored .030" oversize and fitted with Mahle® forged pistons. The rotating assembly is all SCAT® forged steel – with I beam rods fitted with ARP® rod bolts and full floating pins.

The camshaft is what really makes the X2347D the perfect street cruiser – the intake and exhaust lobes have fast opening ramps to keep port velocity high. The engine idles happily at 800 RPM and pulls 19 inches of vacuum. That translates into snappy acceleration at low engine speeds – and power that pulls strong to 6,000 RPM. New Ford Performance aluminum X2 heads top off the engine. Completing the street tuned package is an Edelbrock Performer RPM® Air-Gap intake and Holley Street Avenger® carburettor. A MSD® Billet Distributor and "Ford Racing" spark plug wires finish the package.

Engine type: 302 based small block Ford
Displacement (cu in): 347
Bore x stroke (in): 4.030" bore x 3.400" stroke

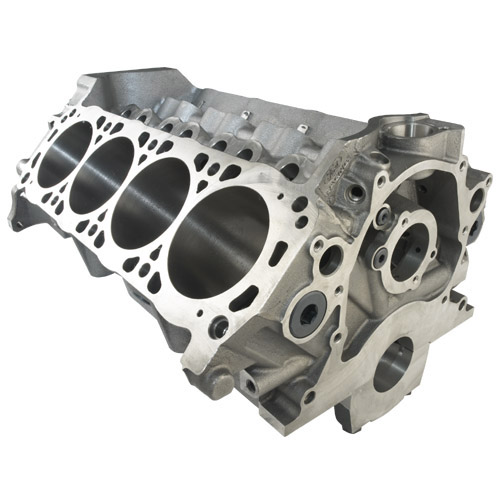

Block: Boss 302 8.2" deck - M-6010-BOSS302
Crankshaft: SCAT® Forged Steel
Connecting rods: SCAT® forged steel I-beam
Pistons: Forged Mahle® w/ floating wrist pins
Cylinder Heads: Ford Performance aluminum, 64 cc chamber - M-6049-X2
Valve size (in): 1.94 intake 1.54 exhaust

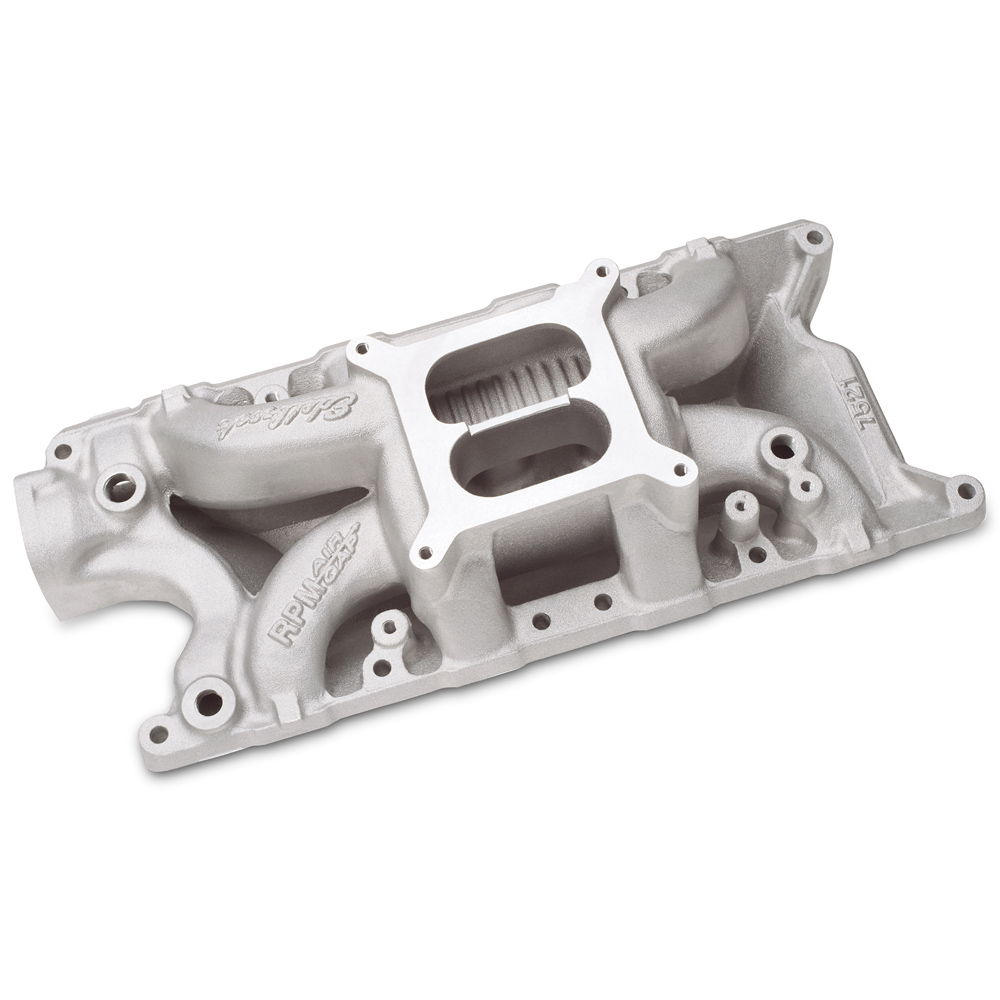

Compression ratio: 9.6:1 Edelbrock Performer RPM® Air Gap Manifold (#7521)
Carburettor:Holley Street Avenger® 570 CFM Carburettor with vacuum secondaries, 4-corner idle and Electric Choke (#83570)
Roller Rockers: 1.6:1 ratio
Valve covers: "Ford Racing" black satin aluminum M-6582-A301R
Distributor:MSD® billet distributor (#8598)
"Ford Racing" 9mm Black Spark Plug Wires - M-12259-M301
Camshaft type: Hydraulic Roller. Comp Cams® .533" lift intake and exhaust 206° duration intake and exhaust @ .050” lift
Timing Set:Double roller timing chain set - M-6268-A302
Vibration Damper: Ford Racing SFI Approved
Oil pan: High performance front sump 7 quart capacity and windage tray / scraper
Balanced: Internal. Use neutral balance flywheel
