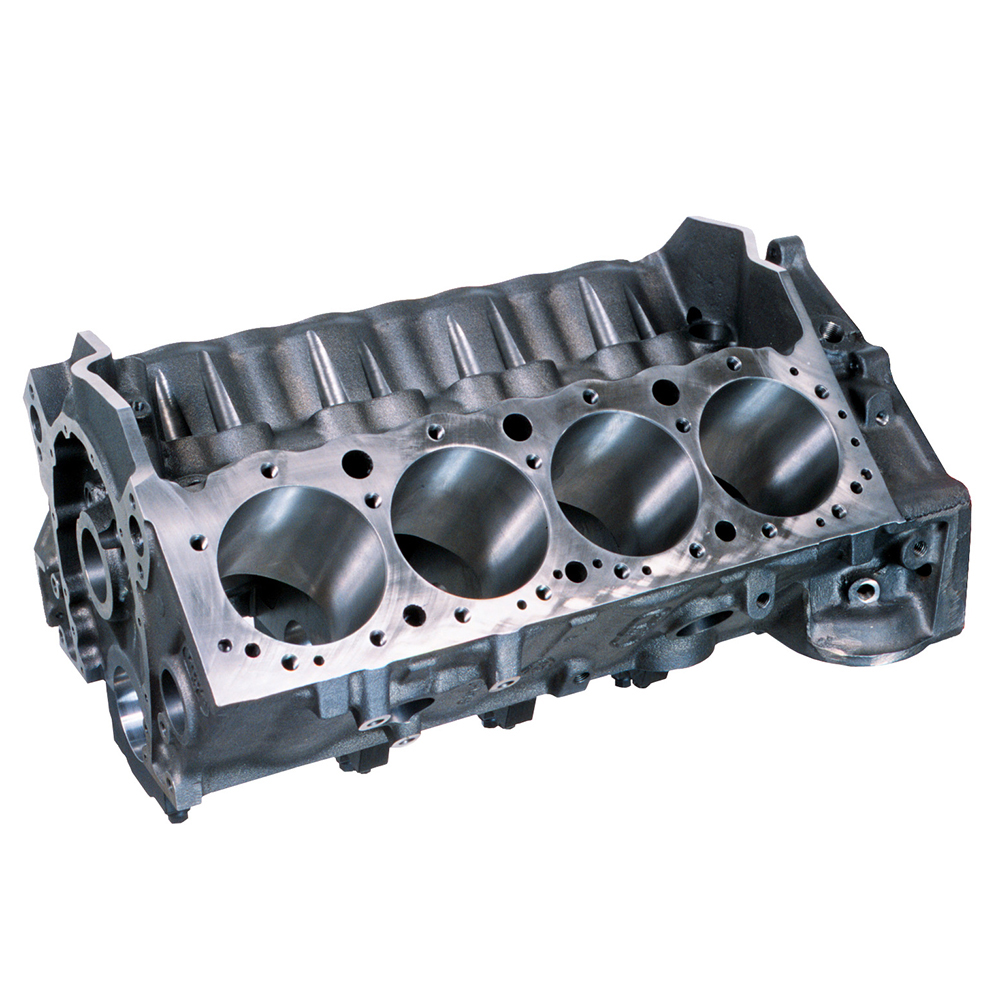

Engine block Chev SB little M 4.125" bore 9.025" deck height


No Brand
Part No: DART31131211
Engine block Chev SB little M 4.125" bore 9.025" deck height 350 mains steel caps 2 piece rear main uses OE camshaft and pre 1980 left hand dipstick oil pan (Doesn't include cam bearings) Priority main oiling 4.185" max bore Dart Block 31181211
Additional Notes:
Availability:Out of Stock

P.O.A. (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $9,115.22
Dart Little M Small Block
The Little M is cast from premium high strength iron and beefed up in all the critical areas. A competition oiling system ensures adequate lubrication to the main bearings at high rpm. You can select 4.000" or 4.125" cylinder bores, and 350 or 400 main bearings with steel 4 bolt main caps. Front and rear external oil feed, crossover and restrictor provision simplify plumbing with external pumps.

With a standard deck height, extra thick siamese cylinder walls and a competition oiling system, the Little M is the perfect starting point for a powerful and reliable engine for the street or the race track.

Features:
• Extra thick cylinder walls resist cracking and improve ring seal for more power.
• Scalloped outer water jacket walls improve coolant flow around the cylinder barrels to equalize temperatures.
• Priority main oiling system directs oil to the main bearings first for more dependable lubrication.
• Blind tapped head bolt holes prevent water leaks.
• Extra thick decks ensure reliable head gasket seal.
• Standard small block deck height allows use of off the shelf parts.
• Splayed outer bolts on middle main bearing caps prevent cracks.
• Open lifter valley improves return to oil pan.
• Enlarged lifter bosses accommodate offset and oversize lifters.
• 4 bolt billet steel main caps have splayed outer bolts for extra strength
• Front and rear external oil inlets, crossovers and restrictor provisions to simplify plumbing with external pump.
• Block includes special coated cam bearings, freeze plugs & dowels.





Part #
Description
Back Order
Your Price
Qty

FEL1206
FEL1206
Manifold gasket - inlet Chev 262-400 SB V8 1955-96 medium ra
No
$48.85 (incl Gst)
RP01335
RP01335
Royal Purple max-tuff synthetic engine assembly lube (8oz /
No
$37.32 (incl Gst)
COMC5248-051
COMC5248-051

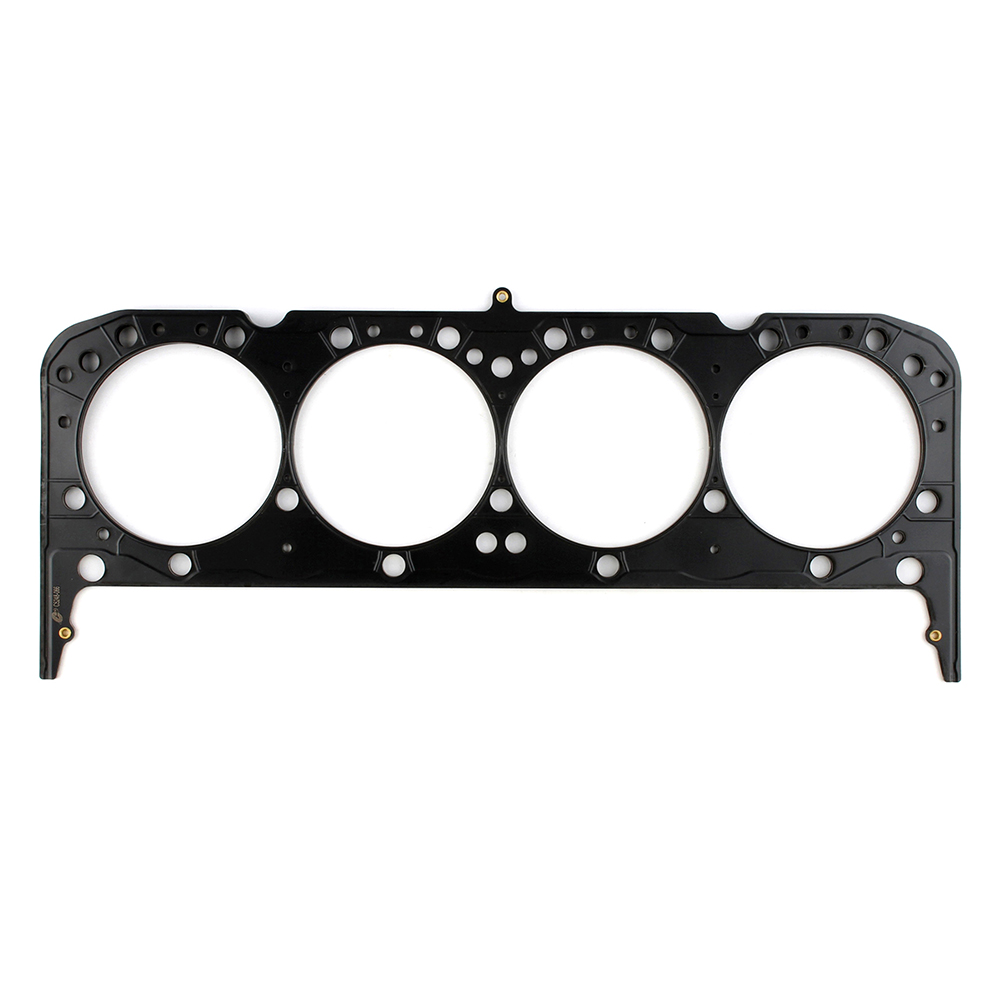

Head gasket Chev SB 262 400 V8 multi layer steel 4.165 bore
No
$173.70 (incl Gst)
Sorry there are no PDF documents for this product







Fitment

You Might also like...

Chev SB Little M Block by Dart

Engine block Chev SB little M 4.00" bore 9.025" deck height


View Part No : DART31131111


Engine stand 4 wheel 1250lb centre height 820mm LD-E02125 we


View Part No : TOOLENGSTAND-1

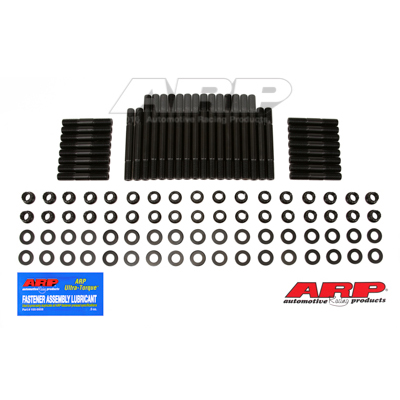

ARP 234-4332 Head stud kit

Head stud kit Chev SB OEM cast iron & aluminium dart sportsm


View Part No : ARP234-4332

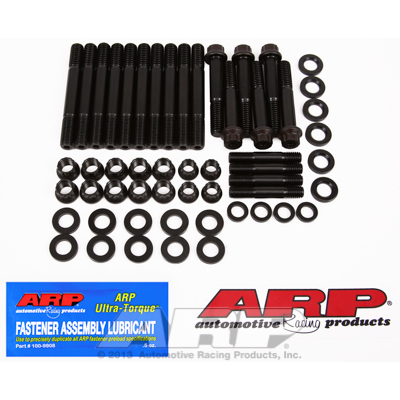

ARP 234-5801 Main stud kit Chev SB
